Pre - Filled Casting Epoxy Resin

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO 9001, ISO14001
Model Number JT8055
Product Details
Chemical Resistance:
High
Color:
Transparent
Cure Mechanism:
Chemical
Cure Speed:
Slow
Cure Temperature:
Room Temperature
Cure Time:
24 Hours
Cure Type:
Two Component
Elongation:
High
Flexibility:
High
Heat Resistance:
High
Impact Strength:
High
Product Name:
Room Temperature Curing Epoxy Resin
Shear Strength:
High
Tensile Strength:
High
Viscosity:
Low
High Light:

Pre - Filled Casting Epoxy Resin

,

Casting Epoxy Resin For Transformer

,

Pre - Filled Epoxy Resin Chemical

Payment & Shipping Terms
Minimum Order Quantity
20kg
Price
negotiable
Packaging Details
25kg/drum
Delivery Time
3-5 working days
Supply Ability
20 tons/ week
Product Description



PRE-FILLED CASTING EPOXY RESIN FOR DRY TYPE TRANSFORMERS CLASS F



PRODUCT DESCRITION:

JT8055A&B is liquid, latent, silica flour pre-filled, hot-curing cast resin system. Especially formulated for convenient in processing with excellent impregnating performance.



APPLICATION:

For dry type transformer



PROCESSING METHODS:

Conventional casting with stage wise curing, or pressure gelation or

Automatic pressure gelation casting (PG or APG process)



PROPERTIES:



1. Long pot life, short gel-time under high temperature

2. Excellent mechanical and electrical properties

3. Excellent crack resistance



PRODUCT TECHNICAL DATA:

JT 8055A Liquid, prefilled, solvent-free epoxy resin

TYPICAL VALUES*

Aspect( by visual)………………………………………………………………………………………………….....…....Red paste



Viscosity @ 40℃, mPa.s [ ISO 2555: 1989].........................................................................................................2000-3000

(tested by Brookfiled viscometer)



Density @ 20℃, g/cm3 [g-Kugel] ...........................................................................................................................1.55-1.62



Filler content, %(Pbw)..................................................................................................................................................47-52



Glass transition temperature( Tg, ℃)..……………………………………………………………………………....………..65-80



Flash point: …………………………………………………………………………………….……………………..…..…....>180℃



JT 8055B Liquid, modified, prefilled and pre-accelerated anhydride hardener

TYPICAL VALUES*

Aspect( by visual)…………………………………………………………………………………………………..…cream-colored



Viscosity @ 40℃, mPa.s [ISO 2555:19890]........................................................................................................1000-4000

(tested with Brooked viscometer)



Density @ 20℃, g/cm3 ISO2811-2:1997..............................................................................................................1.60-1.80



Filler content, % Pbw.................................................................................................................................................52-58



Flash point: …………………………………………………………………………………………………………………………………...>130℃



Vapor pressure………………………………………………………………………………………………………….…<0.1 mmHg



Pre - Filled Casting Epoxy Resin 0Pre - Filled Casting Epoxy Resin 1

JT 8055B contains accelerator. Prolonged storage at high ambient temperatures results in an

undesirable increase in its viscosity and impairs the reactivity of the casting resin system. It is sensitive to moisture. Partly emptied containers must be resealed immediately.



Remark:

Prefilled liquid products always show small filler sedimentation. Before partial use, we

recommend to stir up carefully the components or to use each container as complete unity.





Process data (guideline values):

General instructions for preparing liquid resin systems

Long pot life is desirable in the processing of any casting resin system. Mix all of the components together very thoroughly at room temperature or slightly above and under vacuum. Intensive wetting of the filler is extremely important. Proper mixing will result in:



• Better flow properties and reduced tendency to shrinkage

• Lower internal stresses and therefore improved mechanical properties on object

• Improved partial discharge behavior in high voltage applications.



For the mixing of medium- to high viscous epoxy casting resin systems and for mixing at lower temperatures, we recommend special thin film degassing mixers that may produce additional self-heating of 10-15 K as a result of friction. For low viscous Epoxy casting resin systems, conventional anchor mixers are usually sufficient. The prefilled Epoxy resin and Hardener can be stored at elevated temperature (about 60°C) for up to about 1 week, de-pending on formulation. Intermittent agitation during storage is advisable to prevent filler sedimentation.



Mixing time can vary from 0.5 to 3 hours, depending on mixing temperature, quantity, mixing equipment and the particular application. The required vacuum is 0.5 to 8 mbar. The vapor pressure of the individual components should be taken into account



Dilute leftover mix at the end of a shift with the resin component prior to storage overnight or

over the weekend. Piping containing prefilled components or casting mixes should be cooled

immediately after work to prevent sedimentation and/or undesired viscosity increases. This

helps minimize material losses and cleaning work. If temperature cooling to under 18°C and

suspend working on weekend(about 48hours) and without cleaning, which is possible.





Hubei Plant and Guangdong Plant:

Pre - Filled Casting Epoxy Resin 2



Production equipment:

Pre - Filled Casting Epoxy Resin 3



Testing equipment:

Pre - Filled Casting Epoxy Resin 4

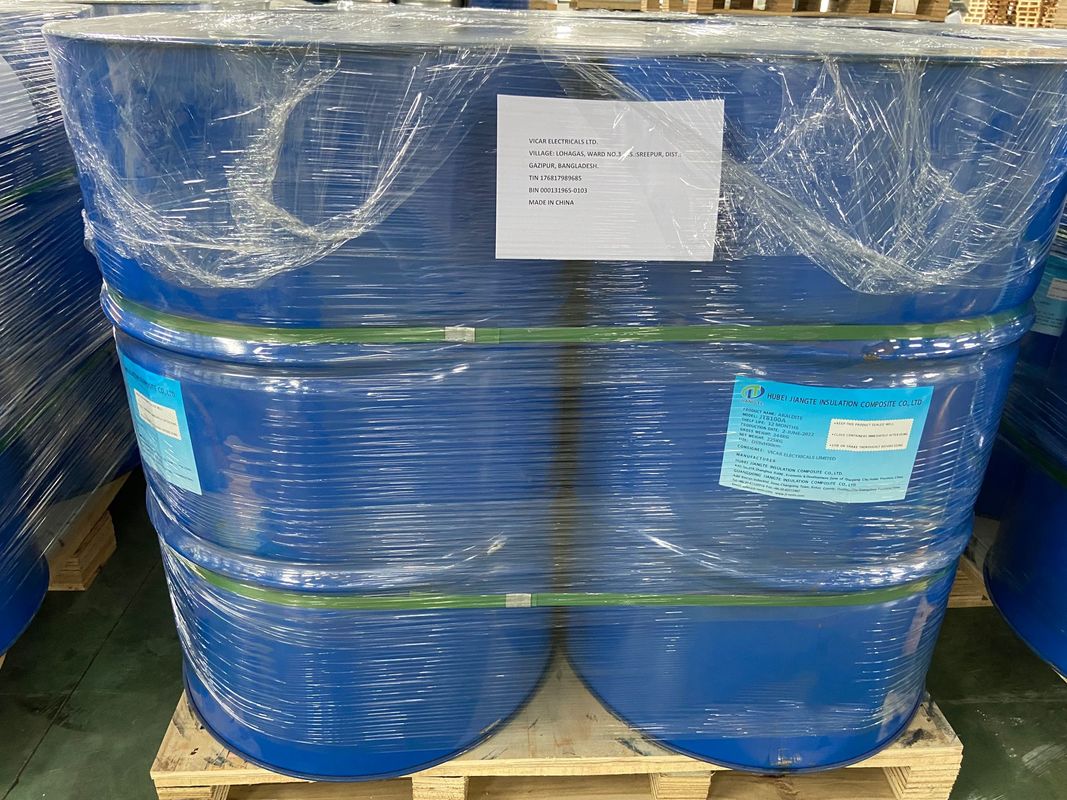

Packing & loading photo for JT8055A&B:

Pre - Filled Casting Epoxy Resin 5



Pre - Filled Casting Epoxy Resin 6







Part of our partners:



Pre - Filled Casting Epoxy Resin 7



Pre - Filled Casting Epoxy Resin 8







ISO CERTIFICATE:

Pre - Filled Casting Epoxy Resin 9



Pre - Filled Casting Epoxy Resin 10







STORAGE:



The components have to be stored under dry conditions at 5 - 25°C, in tightly sealed original containers. Under these conditions, the shelf life will correspond to the expiry date stated on the label. After this date, the product may be processed only following reanalysis. Partly emptied containers should be closed tightly immediately after use. For information on waste disposal and hazardous products of decomposition in the event of fire, please refer to the Material Safety Data Sheets (MSDS) for these particular products.





FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.



2. What is the price of your product?

Pls let us know the exact product that you are interested, so that we can offer you the price, we can offer you the FOB, C&F and CIF price as per your request, and our price is normally valid for 15 days due to chemical material floating cost.



3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight





4. What is your packing?

225kg/drum( pure resin and hardener), 4 drums in one pallet

25kg/drum( prefilled resin and hardener), 24 drums in one pallet

25kg/drum( for color paste and others)



The above packing is for your reference only, the exact final packing may be different as per the product and quantity, for the exact packing, please let us know the exact quantity and product you are interested, so that we can send you the quotation accordingly.
