Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid
  • Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid
  • Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid
  • Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid
  • Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid
  • Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid

Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 8068/1
Product Details
Shape:
Liquid
Color:
White
Industry:
Electrical Insulator
Thermal Class:
F
Application Environment:
High Temperature
Name:
Epoxy Electrical Insulation System
Process:
Conventional Vacuum Self Gravity Casting
High Light:

Prefilled Transformer Epoxy Resin

,

Liquid Transformer Epoxy Resin

,

Liquid White Epoxy Resin

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$3/kg

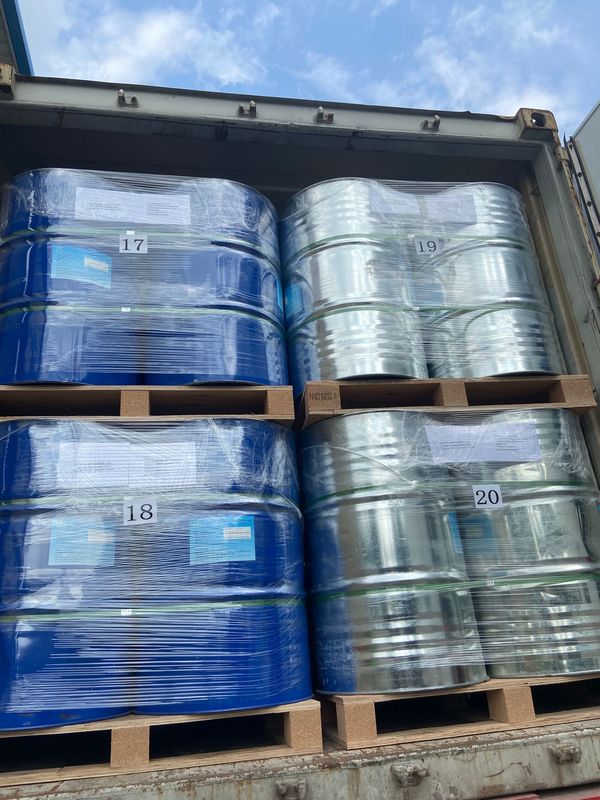

Packaging Details
1200kgs/pail
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

Prefilled Epoxy Resin and Hardener used for 66KV Dry Type Transfomer with Casting process

Proportion:



JT 8068-1 A Liquid and Solvent free modified epoxy resin

TYPICAL VALUES*

Viscosity @ 25, mPa.s [ISO 12058] .................................................................. 1,500-3,000

Epoxy value, equiv/g [ISO 3001] .............................................................................0.45-0.51

Density @ 25℃ , g/cm3 [ISO 1675] ........................................................................1.13--1.15

Vapor pressure @20°C, pa (knudsen) ...........................................................................<0.01

@60°C, pa(knudsen) ..............................................................................<0.5

Storage life @ 25℃ (sealed container), month ……………………………………………………………..12

Remark:In order to prevent the absorption of moisture,please keep epoxy resin in sealed container and storage under normal temperature (about 20 to 25℃).





JT 8068-1 B Modified liquid Epoxy hardener

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] ............................................................................50-80

Vapour Pressure @ 20℃, mbar( Knudsen)....................................................................Ca.0.5

@ 60℃,mbar(Knudsen) .....................................................................Ca.10

Density @ 25℃ , g/cm3 [ISO 1675] .........................................................................1.19-1.22

Storage life @ 25℃ (sealed container), month …………………………………………………………….12

Remark:It may be crystallized when stored at low temperature place. After heating to 60℃, crystal can

be eliminated; JT8068-1B contains accelerator. Prolonged storage at high embient temperatures will result in an undesirable increase in its viscosity and impairs the reactivity of casting resin system.



Process viscosity:

Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid 0









Application area:

Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid 1Prefilled White Transformer Epoxy Resin Electrical Insulator Liquid 2
