Impregnation Heat Resistance Resin
  • Impregnation Heat Resistance Resin
  • Impregnation Heat Resistance Resin
  • Impregnation Heat Resistance Resin

Impregnation Heat Resistance Resin

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number JT8990
Product Details
Shape:
Liquid
Color:
Transparent
Industry:
Electrical Insulator
Thermal Class:
F
Application Environment:
High Temperature
Name:
Epoxy Electrical Insulation System
Process:
Conventional Vacuum Self Gravity Casting
Abrasion Resistance:
Good
Adhesion:
Strong
Chemical Resistance:
High
Compressive Strength:
High
Curing Time:
Short
Dielectric Strength:
High
Flexibility:
Good
Heat Resistance:
High
Impact Resistance:
High
Insulation Performance:
Good
Material:
Epoxy Resin
Shear Strength:
High
Tensile Strength:
High
Viscosity:
Low
High Light:

Impregnation Heat Resistance Resin

,

Liquid Heat Resistance Resin

,

Impregnation Transparent Resin Epoxy

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$3/kg

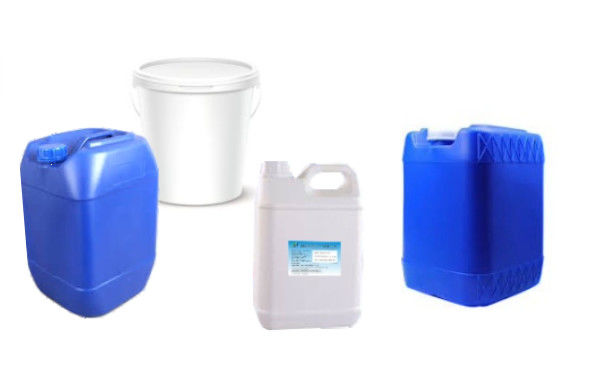

Packaging Details
1200kgs/pail
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

CASTING IMPREGNATION EPOXY RESIN AND HARDENER FOR 33KV DRY TYPE TRANSFORMERS CLASS H

Proportion:



JT 8990 A Epoxy Resin 100 pbw

JT 8990B Epoxy Hardener 80 pbw





Liquid, Latent, Silica flour filled, hot-curing cast resin system. Specially formulated for convenient in processing with excellent impregnating performance.







Applications:

For medium and high voltage indoor transformer,electrical insulators, such as switches and electrical parts, etc



Processing methods:

Conventional vacuum self gravity casting



Product data(Guideline values) *



JT 8068-1 A Liquid and Solvent free modified epoxy resin

TYPICAL VALUES*

Viscosity @ 25, mPa.s [ISO 12058] .................................................................. 1,500-3,000

Epoxy value, equiv/g [ISO 3001] .............................................................................0.45-0.51

Density @ 25℃ , g/cm3 [ISO 1675] ........................................................................1.13--1.15

Vapor pressure @20°C, pa (knudsen) ...........................................................................<0.01

@60°C, pa(knudsen) ..............................................................................<0.5

Storage life @ 25℃ (sealed container), month ……………………………………………………………..12

Remark:In order to prevent the absorption of moisture,please keep epoxy resin in sealed container and storage under normal temperature (about 20 to 25℃).





JT 8068-1 B Modified liquid Epoxy hardener

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] ............................................................................50-80

Vapour Pressure @ 20℃, mbar( Knudsen)....................................................................Ca.0.5

@ 60℃,mbar(Knudsen) .....................................................................Ca.10

Density @ 25℃ , g/cm3 [ISO 1675] .........................................................................1.19-1.22

Storage life @ 25℃ (sealed container), month …………………………………………………………….12

Remark:It may be crystallized when stored at low temperature place. After heating to 60℃, crystal can

be eliminated; JT8068-1B contains accelerator. Prolonged storage at high embient temperatures will result in an undesirable increase in its viscosity and impairs the reactivity of casting resin system.



Process viscosity:

Impregnation Heat Resistance Resin 0









Application area:

Impregnation Heat Resistance Resin 1Impregnation Heat Resistance Resin 2
