| Place of Origin | HUBEI, CHINA |
| Brand Name | JT |
| Certification | ISO |
| Model Number | JT8059 |

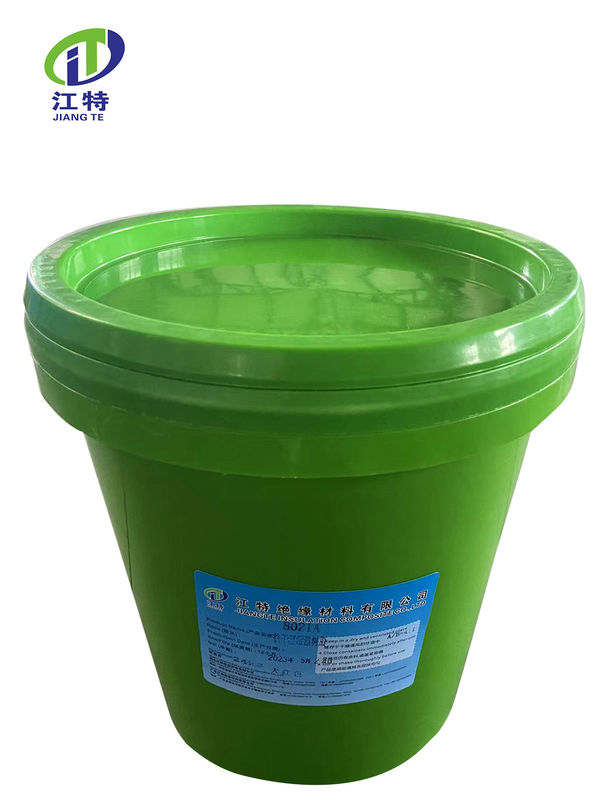

Additives Flame Retardant Resin For Electric Insulators CT PT
TDS:
|
JT 8059A Epoxy Resin 100 pbw JT 8059B Epoxy Hardener 80 pbw |
|
|
Liquid, Latent, Silica flour filled, hot-curing cast resin system. Specially formulated for convenient in processing with excellent impregnating performance.
|
|
| Instrument transformers and Dry type distribution transformer. |
Applications
|
|
Conventional casting with stage wise curing, or pressure gelation or Processing methods Automatic pressure gelatin casting (PG or APG process).
|
|
|
Long pot-life, short gel-time under high temperature Excellent mechanical and electrical properties Excellent crack resistance
|
Properties
|
|
Hubei Jiangte Insulation Composite Guangzhou Jiangte Insulation Composite Add:No.219,Zhanghua Rd(N),Economic & Development Add:Rm606,DongHong International Plaza, No. Zone of Qianjiang City, Hubei Province, China. 113, Chebei Rd, Tianhe District, Guangzhou,China. Tel:+86-728-6201068 Tel:+86-20-82320316 Fax:+86-728-6202066 Fax:+86-20-82315407
|
|
| Product data (guideline values) |
| Liquid, prefilled, solvent-free epoxy resin | ||||||
| JT 8058A Aspect | Visual - | Red paste | ||||
| Viscosity | At 40℃ | ISO2555:1989 Mpa.s 2000 - 5000 | ||||
| (test with Brookfield viscometer) | ||||||
| Specific weight | At 20℃ | ISO2811－2:1997 g/cm3 1.55 - 1.62 | ||||
| Filler content | % by weight 47 - 52 | |||||
| Liquid, modified, prefilled and pre-accelerated anhydride hardener | ||||||
| JT 8058B Aspect | Visual - | Red paste | ||||
| Viscosity | At 40℃ | ISO2555:1989 Mpa.s 1500 - 3000 | ||||
| (with Brookfield viscometer) | ||||||
| Density | At 20℃ | ISO2811－2:1997 g/cm3 1.70 - 1.80 | ||||
| Filler content | b | % by weight 52 - 58 | ||||
|
JT 8055B contains accelerator. Prolonged storage at high ambient temperatures results in an undesirable increase in its viscosity and impairs the reactivity of the system mix. It is sensitive to moisture. Partly emptied containers must be resealed immediately.
|
||||||
|
Remark Prefilled liquid products always show small filler sedimentation. Before partial use we recommend to stir up carefully the components or to use each container as complete unity
|
||||||
|
Storage The components have to be stored under dry conditions at 5 - 25°C in tightly sealed original containers. Under these conditions, the shelf life will correspond to the expiry date stated on the label. After this date, the product may be processed only following re-analysis. Partly emptied containers should be closed tightly immediately after use. For information on waste disposal and hazardous products of decomposition in the event of fire, refer to the Material Safety Data Sheets (MSDS) for these particular products.
|
||||||
| Processing (guideline value) | ||||
| Tested system: | ||||
| JT 8058A / JT 8058B | ||||
| Mixing Ratio:100/80 pbw | ||||
|
Processing Viscosities |
| Gelation-/Cure Times |
| Mechanical and Physical Properties (guideline value) | ||||
| Tested system: | ||||
| JT 8058A / JT 8058B | ||||
| Mixing Ratio:100/80 pbw | ||||
| Determined on standard test specimen at 23°C | ||||
| cured for 6 hours at 80°C then 4 hours at 100C and then 6hours at 130°C | ||||
Tensile strength ISO R 527: 1993 N/mm² 65 - 78
Elongation at break % 1.8 - 2.0
E modulus from tensile test N/mm² 8000 - 9500
Flexural strength ISO 178: 2001 MPa 110 - 125
Surface strain % 1.5 - 1.7
E modulus MPa 8000 - 9500
Critical stress intensity factor (K IC ) MPa·m ½ 2.4 - 2.6
Glass transition temperature ISO 11357-2: 1999°C 65 - 80
Coefficient of linear thermal expansion ISO 11359: 1999
Mean value below Tg ppm/K 40 - 43
Water absorption (specimen: 50x50x4 cm) ISO 62
60 min at 100°C % by wt. 0.15 - 0.20
Density at 20°C g/cm³ 1.65 – 1.75
Thermal life Class (20000h)
PRODUCT NAME:
Epoxy Electrical Insulation System
Client Product:
Equipment used by customers:
Hubei Plant and Guangdong Plant:
ISO certifcate:
Part of our customers:
FAQ:
1. What’s the Pre-filled?
Pre-filled is the resin or hardener has been filled with silica sands before delivering to you.
2. Is Pre-filled resin cheaper than Pure resin?
Generally it is. However, you should consider the final cost. If you can find qualified silica sands in you local market, the pure resin is better choice. Silica sands are very cheap, sea freight cost is high. With same quantity of resin in a shipment, you can get more final mixed resin with local silica sands.
3. Why JiangTe resin doesn’t offer Flexibilizer and Accelerator?
We’ve added them into resin/hardener already before delivering to you. So you can use our materials easily
