Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp
  • Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp
  • Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp
  • Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp
Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp

Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp

Place of Origin China
Brand Name JT-RESIN
Certification SGS，CE,UL
Model Number JT8835A&B
Product Details
Shape:
Liquid
Color:
White
Industry:
Electrical Insulator
Application Environment:
High Temperature
Name:
Epoxy Electrical Insulation System
Process:
Conventional Vacuum Self Gravity Casting
Compound:
2
Highlight:

High Temp Epoxy Curing Agent

,

Epoxy Curing Agent Liquid

,

Liquid Two Component Epoxy Resin

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$3/kg

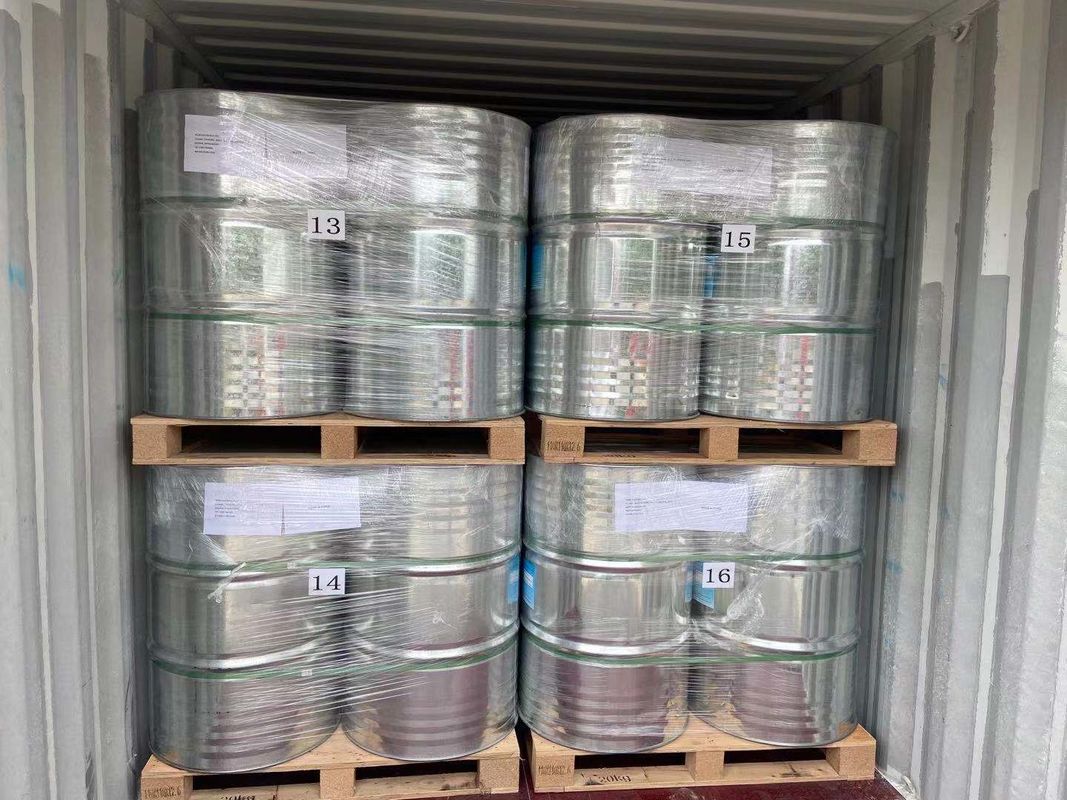

Packaging Details
1200kgs/pail
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

Two Component Epoxy Resin Curing Agent For 12KV CT And PT with APG Process

Applications:

For medium and high voltage indoor transformer,electrical insulators, such as switches and electrical parts, etc



Processing methods:

Conventional vacuum self gravity casting



Product data(Guideline values) *



JT 8835A Liquid and Solvent free modified epoxy resin

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] .................................................................. 1,500-3,000

Epoxy value, equiv/g [ISO 3001] .............................................................................0.45-0.51

Density @ 25℃ , g/cm3 [ISO 1675] ........................................................................1.13--1.15

Vapor pressure @20°C, pa (knudsen) .......................................................................<01

@60°C, pa(knudsen) ..............................................................................<0.5

Storage life @ 25℃ (sealed container), month ……………………………………………………………..12

Remark:In order to prevent the absorption of moisture,please keep epoxy resin in sealed container and storage under normal temperature (about 20 to 25℃).





JT 8068-1 B Modified liquid Epoxy hardener

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] ............................................................................50-80

Vapour Pressure @ 20℃, mbar( Knudsen).................................Ca.0.5

@ 60℃,mbar(Knudsen) .....................................................................Ca.10

Density @ 25℃ , g/cm3 [ISO 1675] .........................................................................1.19-1.22

REMARK:It may be crystallized when stored at low temperature place. After heating to 60℃, crystal can

be eliminated; JT8068-1B contains accelerator. Prolonged storage at high embient temperatures will result in an undesirable increase in its viscosity and impairs the reactivity of casting resin system.



Process viscosity:

Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp 0









Application area:

Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp 1Two Component Epoxy Resin Curing Agent Liquid Insulation System High Temp 2





Tags:

electrical insulating epoxy,

High Temperature Epoxy,

uv resistant resin
