White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator
  • White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator
  • White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator
  • White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator
  • White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator

White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number JT8666
Product Details
Shape:
Liquid
Color:
White
Industry:
Electrical Insulator
Application Environment:
High Temperature
Name:
Epoxy Electrical Insulation System
Process:
APG
Main Raw Material:
Epoxy
Classification:
Other Adhesives
Mf:
Mixture
Appearance:
Smooth Paste
High Light:

White Epoxy Resin Paste

,

Electrical Insulator High Temperature Epoxy

,

Transformer High Temperature Epoxy

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$3/kg
Packaging Details
1200kgs/pail
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

Come from China Big factory Epoxy Resin Curing Agent For Medium High Voltage Transformers

TDS:





JT 8666A Epoxy Resin 100 pbw

JT 8666B Epoxy Hardener 80 pbw

Silica filler(Silanised treated) 300 pbw





Liquid, Hot-curing cast resin system for outdoor electrical insulation material for medium and high voltage application





Current and potential transformers



Applications



White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 0White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 1

Conventional casting with stage wise curing, or pressure gelation or Processing methods

Automatic pressure gelation casting (PG or APG process).







Very good mechanical and electrical properties. Properties

Good temperature shock resistance.

Use of silanized fillers enhances stability of dielectric properties under high-humidity condition.

Very good resistance to erosion by UV radiation.













Application area:

White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 2White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 3

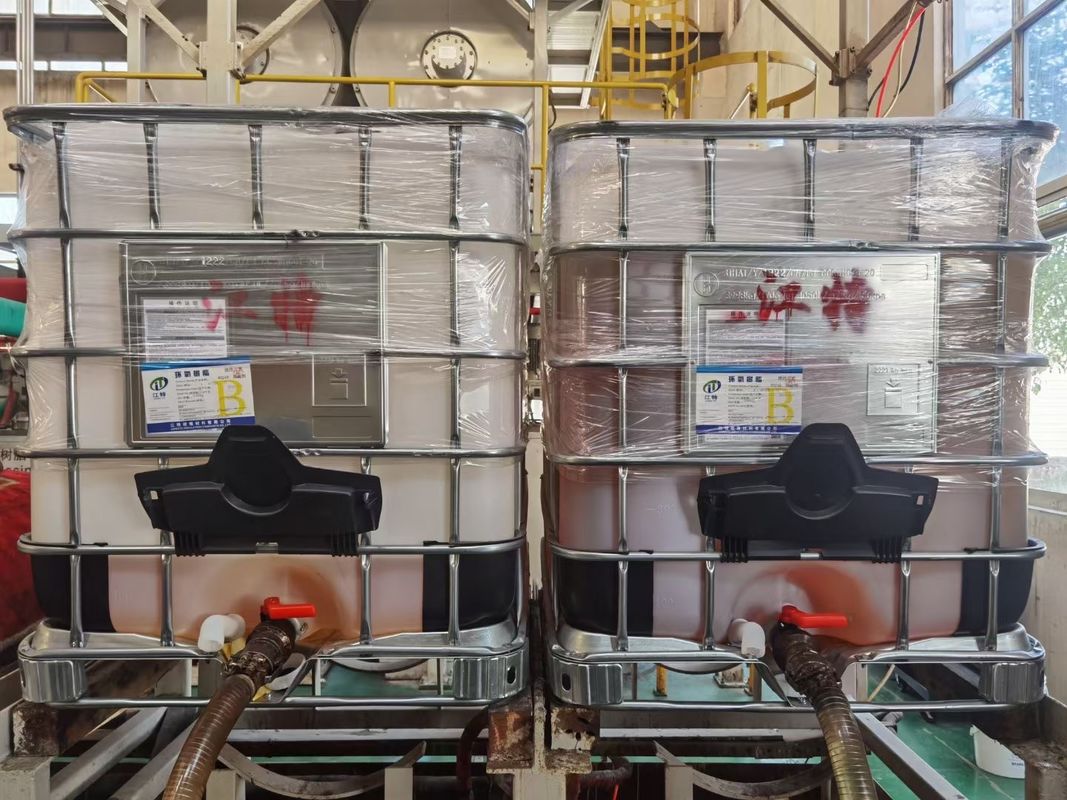

My Factory:

White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 4

White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 5

White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 6

My Client:



White Epoxy Resin Paste , Transformer High Temperature Epoxy Electrical Insulator 7



FQA:

1 What’s the Pre-filled?
  Pre-filled is the resin or hardener has been filled with silica sands before delivering to you.
2 Is Pre-filled resin cheaper than Pure resin?
  Generally it is. However, you should consider the final cost. If you can find qualified silica sands in you local market, the pure resin is better choice. Silica sands are very cheap, sea freight cost is high. With same quantity of resin in a shipment, you can get more final mixed resin with local silica sands.
3 Why JiangTe resin doesn’t offer Flexibilizer and Accelerator?
  We’ve added them into resin/hardener already before delivering to you. So you can use our materials easily.
4 Should I tell you our process when purchasing?
  Yes, our materials have two kinds on most of items: Vacuum Casting and Auto Pressure Gelation (APG).
5 Do you have one material which is suitable for both CT PT and bushings insulators?
  No, the requirements of CT PT and bushings insulators on electrical characters are different. We’ll help you find the suitable one.
6 We’re using Huntsman epoxy resin, can I use JiangTe resin?
  Yes, ours are equivalent to Huntsman. Please tell the number of Huntsman you’re using, we’ll offer the one matching.
7 What’s the pot life?
  Pre-filled resin is one year; Pure resin is 2-3 years.
8 What's the packing?
  Pre-filled resin is in 25kg drums; Pure resin is in 225kg drums; We also have 5kg drums, IBC tanks and etc.
9 We’re just starting producing. Can you help us on the process?
  No problem, we’ll offer guidance and support. We have thousands of customer manufacturers in China and overseas. So we have good experiences.
