Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin
  • Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin
  • Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin
  • Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number JT8259
Product Details
Shape:
Liquid
Application Object:
Electrical Insulation
Name:
Curing Epoxy Resin
MF:
C21H24O4
Main Raw Material:
Epoxy
Classification:
Epoxy Resin Potting Compound
Chemical Resistance:
Good
Color:
Transparent
Cure Time:
24 Hours
Elongation:
100-200%
Flexural Strength:
4,000-5,000 Psi
Hardness:
Shore D 80
Heat Resistance:
150°C
Impact Resistance:
High
Mix Ratio:
2:1
Pot Life:
20-30 Minutes
Product Name:
Casting Epoxy Resin
Tear Strength:
200-400 Psi
Tensile Strength:
3,000-4,000 Psi
Viscosity:
500-1000 Cps
Water Absorption:
0.2-0.4%
High Light:

Electrical Insulation Epoxy Potting Compound

,

Transparent Epoxy Potting Compound

,

24 Hours Transparent Casting Resin

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$4/kg
Packaging Details
25kg/pail,5kg/pail
Delivery Time
3 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

Wholesale APG molds with electrical insulation epoxy resin for EMBEDDED POLES

Product TDS:

JT 8259A Epoxy Resin 100 pbw

JT 8259B Epoxy Hardener 80 pbw



Wholesale APG molds with electrical insulation epoxy resin can be a useful material for embedded poles in transformers. Here are some features and benefits of using APG molds with electrical insulation epoxy resin for embedded poles:

Accurate Molding: APG molds can provide accurate and consistent molding of embedded poles, ensuring that they meet the required specifications and performance standards.

Electrical Insulation: Epoxy resin is an excellent electrical insulator, which makes it ideal for use in transformer applications. Embedding the poles in epoxy resin can help to prevent electrical current from flowing through the poles, reducing the risk of electrical breakdown or short circuits.

Corrosion Protection: Epoxy resin is highly resistant to corrosion, which makes it a good choice for use in harsh environments, where exposure to moisture or other corrosive substances could cause damage or corrosion.

Mechanical Protection: Embedding the poles in epoxy resin can also provide mechanical protection to the poles. The resin can help to strengthen the poles, making them more resistant to bending, cracking, or breaking.

Customizable: APG molds with electrical insulation epoxy resin can be customized to meet specific performance requirements, such as low viscosity, high filler loading, or high thermal stability. This makes it a versatile material that can be customized to meet the needs of different transformer applications.

Overall, wholesale APG molds with electrical insulation epoxy resin can be an effective and reliable material for embedded poles in transformers. Its combination of accurate molding, electrical insulation, corrosion protection, mechanical protection, and customization options make it a popular choice for transformer manufacturers.

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 0

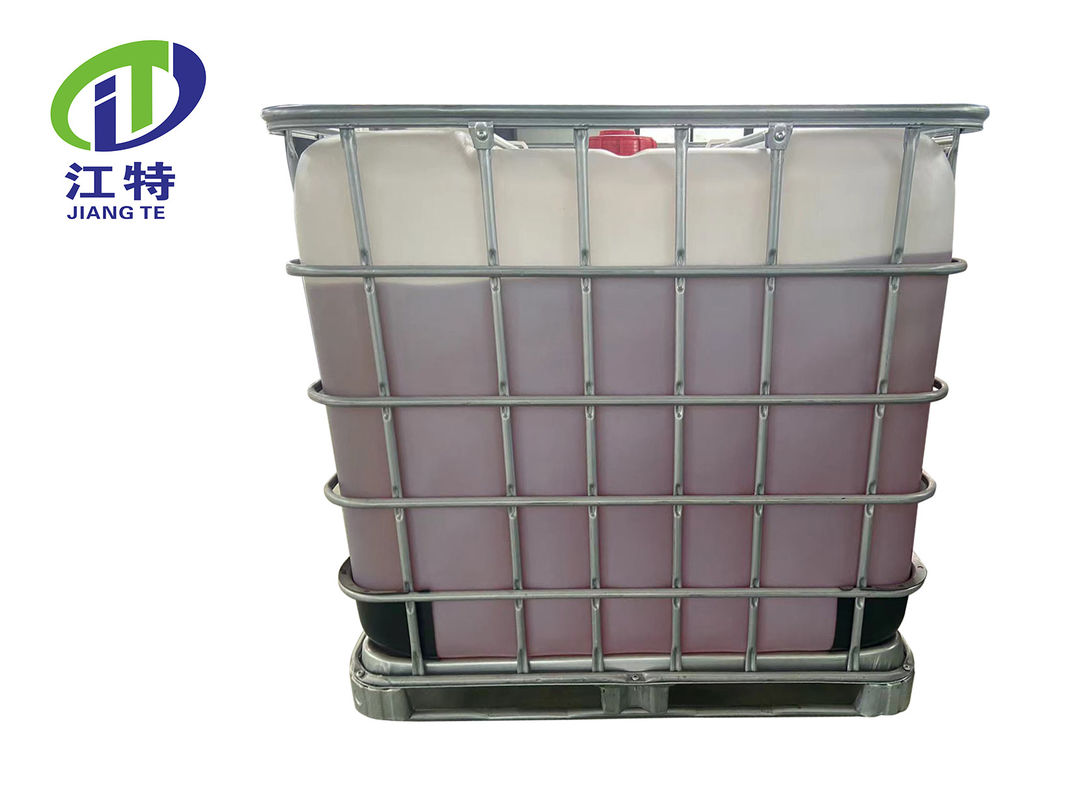

Our Packing:

25kg/pail; 220kg/pail;1200kg/pail

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 1

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 2

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 3

Product MSDS:



1. IDENTIFICATION

Commodity name: JT 8054A Modified epoxy resin

Company Name: HUBEI JIANGTE IN8

Fax:+86-728-6202066

Zip code:433132





2. HAZARDS IDENTIFICATION

Irritating to eyes and skin.

May cause sensitization by skin contact.

Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment.





3. COMPOSITON INFORMATION ON INGREDIENT

Chemical Name CAS No. Content(%)
4,4'-(1-methylethylidene)bisphenol polymer with (chloromethyl)oxirane 25068-38-6 >90.0 - <100.0
Poly(propylene glycol) 25322-69-4 >0.0 - <10.0





4. FIRST AID MEASURES

A. Eye contact

- Do not rub your eyes.

- Immediately flush eyes with plenty of water for at least 15minutes and call a doctor/physician.



B. Skin contact

- Flush skin with plenty of water for at least 15minutes while removing contaminated clothing and shoes.

- Laundering enough contaminated clothing before reuse.

- Go to hospital immediately if symptoms(flare, irritate) occur.

- Wash thoroughly after handling.



C. Inhalation contact

- When exposed to large amounts of steam and mist, move to fresh air.

- Take specific treatment if needed.



D. Ingestion contact

- About whether I should induce vomiting. Take the advice of a doctor.

- Rinse your mouth with water immediately.



E. Delayed and immediate effects and also chronic effects from short and long term exposure

- Not available



F. Notes to physician

- Notify medical personnel of contaminated situations and have them take appropriate protective measures.





5. FIRE-FIGHTING MEASURES

A. Suitable (Unsuitable) extinguishing media

- Dry chemical, carbon dioxide, regular foam extinguishing agent, spray

- Avoid use of water jet for extinguishing



B. Specific hazards arising from the chemical

- Not available



C. Special protective actions for firefighters

- Notify your local firestation and inform the location of the fire and characteristics hazard.

- Using a unattended and water devices in case of large fire and leave alone to burn if you do not imperative.

- Avoid inhalation of materials or combustion by-products.

- Do not access if the tank on fire.

- Use appropriate extinguishing measure suitable for surrounding fire.

- Keep containers cool with water spray.

- Vapor or gas is burned at distant ignition sources can be spread quickly.





6. ACCIDENTAL RELEASE MEASURES

A. Personal precautions, protective equipment and emergency procedures

- Must work against the wind, let the upwind people to evacuate.

- Move container to safe area from the leak area.

- Remove all sources of ignition.

- Do not direct water at spill or source of leak.

- Avoid skin contact and inhalation.



B. Environmental precautions

- Prevent runoff and contact with waterways, drains or sewers.

- If large amounts have been spilled, inform the relevant authorities.



C. Methods and materials for containment and cleaning up

- Large spill : Stay upwind and keep out of low areas. Dike for later disposal.

- Notification to central government, local government. When emissions at least of the standard amount

- Dispose of waste in accordance with local regulation.

- Appropriate container for disposal of spilled material collected.

- Small leak: sand or other non-combustible material, please let use absorption.

- Wipe off the solvent.

- Dike for later disposal.

- Prevent the influx to waterways, sewers, basements or confined spaces.





7. HANDLING AND STORAGE

A. Precautions for safe handling

- Wash thoroughly after handling.

- Avoid direct physical contact.

- Avoid contact with incompatible materials.

- Refer to Engineering controls and personal protective equipment.

- Do not inhale the steam prolonged or repeated.



B. Conditions for safe storage, including any incompatibilities

- Do not use damaged containers.

- Do not apply direct heat.

- Save applicable laws and regulations.

- Avoid direct sunlight.

- Keep in the original container.

- Collected them in sealed containers.

- Do not eat, drink or smoke when using this product.

- Store away from water and sewer.





8. OPERATION DISPOSAL AND STORAGE

Note: closed/sealed operation, provide good natural ventilation condition. The operator must go through specialized training, strictly follow the operating rules. We suggest that the operating personnel wearing Self suction filtering type dust mask, and wearing protective chemical safety glasses.

Storage note: dry and ventilated





9. PHYSICAL AND CHEMICAL PROPERTIES

-Appearance
a. Appearance Liquid(Viscous liquid)
b. Color Transparent
Odor Not data available
-Odor threshold Not data available
-PH 7
-Melting point/Freezing point unapplied (liquid in room temperature)
-Initial Boiling Point/Boiling Ranges > 200 ℃
-Flash point > 180 ℃
-Evaporation rate Not data available
-Flammability(solid, gas) Not data available
-Upper/Lower Flammability or explosive limits Not data available
-Vapour pressure < 0.01Pa (at 20℃)
-Solubility about 0.009 kg/㎥ (at 23℃)
-Vapour density Not data available
-Specific gravity(Relative density) ~1.15g/cm3
-Autoignition temperature Not data available
-Decomposition temperature Not available
-Viscosity 3000~8000 mPa.s(at 25℃)





Clients Products:

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 4Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 5

Related Equipment:



Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 6

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 7



My Factory:

Electrical Insulation Epoxy Potting Compound , 24 Hours Transparent Casting Resin 8





FAQ:



1.Do you think what is your factory's biggest adventage?



A:Technology is our core competitiveness



2.Can your factory supply samples with free if we need?



A: Yes,we can .



3.What is your product's MOQ?



A:We haven't exact MOQ for our products ,if you just need 200 KG we also sell .your satisfaction is our biggest pursuit .
