Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator
  • Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator
  • Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator
  • Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator

Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number JT105 Product
Product Details
Usage:
Coating
Type:
One Component
Material:
100% Thermosetting Material Description 100% Thermosetting Material
Shape:
Class H Epoxy Coating Powder
Application:
Outdoor 10-1100KV High Voltage Electrical Insulation
Adhesion:
High
Chemical Resistance:
High
Color:
Transparent
Curing Time:
24 Hours
Durability:
High
Elongation:
High
Flexibility:
High
Hardness:
High
Heat Resistance:
High
Impact Resistance:
High
Name:
Casting Epoxy Resin
Shrinkage:
Low
Tensile Strength:
High
Viscosity:
Low
Water Resistance:
High
High Light:

Low Viscosity Epoxy Coating Powder

,

Heat Resistant Epoxy Coating Powder

,

Heat Resistant Epoxy For Insulator

Payment & Shipping Terms
Minimum Order Quantity
5000kg
Price
$3/kg
Packaging Details
25kg/pail,5kg/pail
Delivery Time
5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

Epoxy coating powder JT105 For Electrical Insulators insulation of wire and busbars and high performance motors

TDS:

Epoxy coating powder JT105 can be a useful material for electrical insulation of wire and busbars, as well as high performance motors. Here are some features and benefits of JT105 epoxy coating powder:

Electrical Insulation: Epoxy coating powder JT105 is an excellent electrical insulator, which makes it ideal for use in electrical insulation applications. It can help to prevent electrical current from flowing through the insulation, reducing the risk of electrical breakdown or short circuits.

Corrosion Protection: Epoxy coating powder JT105 is highly resistant to corrosion, which makes it a good choice for use in harsh environments, where exposure to moisture or other corrosive substances could cause damage or corrosion.

Chemical Resistance: Epoxy coating powder JT105 is highly resistant to chemicals, which makes it a good choice for use in applications where exposure to chemicals could cause damage or corrosion.

Mechanical Protection: Epoxy coating powder JT105 can also provide mechanical protection to the wire, busbars, or motor components. The coating can help to strengthen the components, making them more resistant to bending, cracking, or breaking.

Customizable: Epoxy coating powder JT105 can be formulated to meet specific performance requirements, such as low viscosity, high filler loading, or high thermal stability. This makes it a versatile material that can be customized to meet the needs of different applications.

Overall, epoxy coating powder JT105 can be an effective and reliable material for electrical insulation of wire and busbars, as well as high performance motors. Its combination of electrical insulation, corrosion protection, chemical resistance, mechanical protection, and customization options make it a popular choice for manufacturers of electrical equipment.



Product name:     Epoxy coating powder JT105

Description:



100% thermosetting material Description



Class H epoxy coating powder



It is optimized for use in automated, high-speed electrostatic coating processes



Formulated with superior cut-through resistance and edge coverage, which is ideal



for high performance, densely wound electric motors





For high performance motors



For insulation of wire and busbars









Application











Excellent productivity Features



Shelf stable at room temperature (23℃/73°F)



Easy and affordable to store and use



Suitable for use in hot, humid climates conditions

Uncured Properties:



Hot Plate Gel time, seconds @ 160℃ 26

@210℃ 10

Stick point(℃) 70



Flow @ 150℃ (mm) 21



Particle size distribution ( %) -177 micron/ 80 mesh 100

-44 micron/ 325 mesh 27.5

Cure time ( seconds) @ 220℃ 45





Typical Cured General Properties:

Available colors Green and black



Density 1.6g/cm³



Edge Coverage (%) 41



Cut-through resistance (℃) 396



Volume resistivity (Ω-cm) 5.409 1016



Dielectric Strength V/ mil 1082

KV/ mm 42.6



Glass transition temperature, Tg (℃) 91

Cured 60 minutes @150℃



Coefficient of thermal Expansion, Alpha 1 39

CtE ( ppm/℃) Alpha 2 123





Storage & Handling:

  1. The shelf life is six months at room temperature (23℃/73°F) from production date.
  2. Shelf life may be extended under cold storage condition.
  3. Shelf life can be 18 months or more if stored at 10℃/ 50°F or below.
  4. The product should be stored in closed containers, which should be brought to the ambient.

Temperature of the manufacturing location before opening to prevent water condensation on the

  •
  1. Do not open the packaging while the product temperature is lower than the manufacturing room temperature, otherwise moisture will condense on the surface of product, which will damage the product and result in processing issues, such as incomplete curing.
  2. The time for temperature equilibration depends on the product, for example, 5kg will take about 4 hours to warm-up, however 50kg may require 12-24hours to equilibrate.
  3. Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator 0

MY COMPANY:

Low Viscosity Epoxy Coating Powder , Heat Resistant Epoxy For Electrical Insulator 1

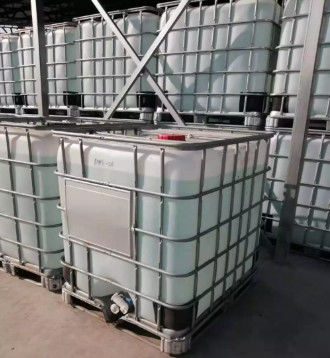

MY WARE HOUSE:
