Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy
  • Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy
  • Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy
  • Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy

Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number JT20651
Product Details
Type:
Liquid Epoxy Resin
MF:
C21H24O4
Appearance:
Liquid
Einecs No.:
135861-56-2
Nature:
Modified Epoxy Resin
Application:
Dry Type Transformer Core Coating
Characteristics:
Strong Adhesion
8. Storage:
Under 18~40℃ Condition
High Light:

Electrical Insulation Transformer Varnish Coating

,

Room Temperature Transformer Varnish Coating

,

Liquid Room Temperature Epoxy

Payment & Shipping Terms
Minimum Order Quantity
25KG
Price
$4/kg
Packaging Details
25kg/pail,5kg/pail
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
200Ton/week
Product Description

JT 2051 B Room temperature Hardener for Electrical Insulation Dry type transformer core coating

TDS:

Epoxy Electrical Insulation System

JT 2051 A Epoxy resin 4

JT 2051 B Room temperature Hardener 1

IMPREGNATION EPOXY RESIN FOR INSULATOR RODS, TUBES

Impregnation with epoxy resin is a common method of insulating and protecting insulator rods and tubes used in electrical applications. Here are some of the key features and benefits of impregnation with epoxy resin:

Electrical Insulation: Epoxy resin is an excellent electrical insulator, which makes it ideal for use in insulating rods and tubes. When the resin is impregnated into the material, it helps to prevent electrical current from flowing through the material, which can reduce the risk of electrical breakdown or short circuits.

Mechanical Protection: In addition to providing electrical insulation, impregnation with epoxy resin can also provide mechanical protection to the material. The resin can help to strengthen the material, making it more resistant to bending, cracking, or breaking.

Chemical Resistance: Epoxy resin is highly resistant to chemicals and moisture, which makes it ideal for use in harsh environments. When the resin is impregnated into the material, it helps to protect it from exposure to chemicals or moisture that could cause damage or corrosion.

Easy Application: Impregnation with epoxy resin is a relatively simple and straightforward process that can be done using a variety of methods, such as vacuum impregnation or dip coating. This makes it a cost-effective and convenient method of insulating and protecting insulator rods and tubes.

Long-lasting: Epoxy resin is a durable and long-lasting material that can provide reliable insulation and protection for many years. When applied correctly, it can help to extend the lifespan of insulator rods and tubes, reducing the need for frequent replacements.

Overall, impregnation with epoxy resin is an effective method of insulating and protecting insulator rods and tubes in electrical applications. Its combination of electrical and mechanical properties, chemical resistance, ease of application, and long-lasting durability make it a popular choice for this application.



Dry type transformer core coating

Application



Strong adhesion Characteristics

Good insulation

Good process performance

Good surface gloss and electrical resistance

Excellent moisture resistance



Packing

Component A:28KG/drum

Component B:4KG/drum

Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy 0Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy 1



1. Appearance& Characteristics:

Item Color Viscosity@25℃(mPa·s) Density@25℃( g/cm3 )
JT2051A Epoxy resin clear liquid 1000-3000 1.00-1.20
JT2051B Hardener Yellowish liquid 10-80 0.90-1.00

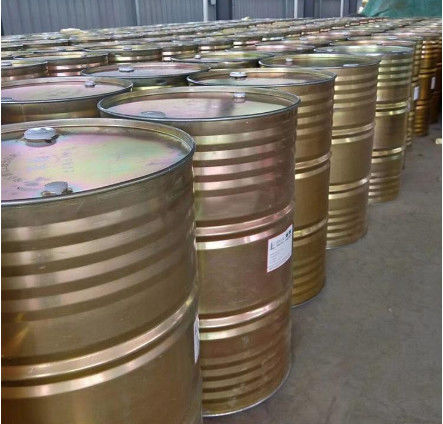

My Factory:

Electrical Insulation Transformer Varnish Coating , Liquid Room Temperature Epoxy 2
