Room Temperature Curing Epoxy Resin
>
|
|
| Place of Origin | China |
| Brand Name | JT-RESIN |
| Certification | SGS，CE,UL |
| Model Number | JT2060 |
Room Temperature Cured EPOXY RESIN With High Dielectric Strength And Volume Resistivity
IRON CORE COATING RESIN FOR ELRECTRICAL INSULATION OF DRY TYPE TRANSFORMERON ROOM TEMPERATURE CURING

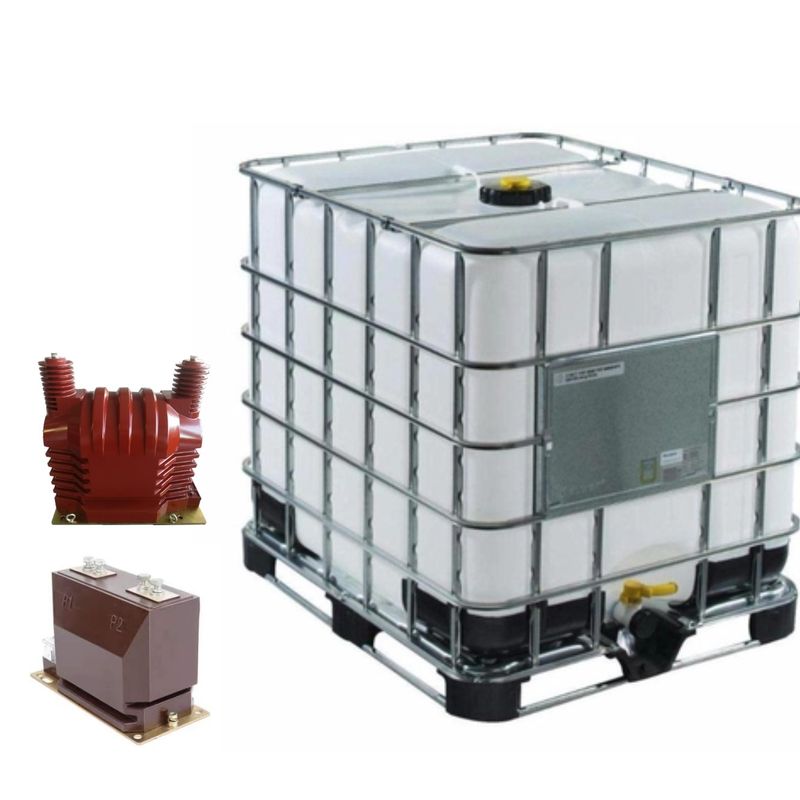

Product display:
Room temperature EPOXY RSIN CURING, pre filled with silica powder
Product TDS:
1. Appearance& Characteristics:
| Item | Color | Viscosity@25℃(mPa·s) | Density@25℃( g/cm3 ) |
| JT2051A Epoxy resin | clear liquid | 1000-3000 | 1.00-1.20 |
| JT2051B Hardener | Yellowish liquid | 10-80 | 0.90-1.00 |
2. Mixing ratio: JT2051A/JT2051B=4/1(pbw)
3. Applicable time: 25-40mintus at 25℃( mixture: 100g)
4. Curing condition: 8-12h@25℃ or 6h@60℃, full curing takes 3days at Room temperature.
5. Process:
Mixing two components in a certain proportion and keep it for 10minutes, brush them to the iron core after the viscosity is increasing.
6. Properties:
| Hardness(Shore D) | 70-80 |
| Bending strength (MPa) | 30-50 |
| Impact strength (kJ/m2) | 20-40 |
| Dielectric strength (kV/mm) | 10-15 |
| Volume resistivity (W·cm) | >1013 |
7. Packing:
Component A: 24kg
Component B: 6kg
Application area:
My Product Line:
My Factory:
My Lab:
FAQ:
1.Do you think what is your factory's biggest adventage?
A:Technology is our core competitiveness
2.Can your factory supply samples with free if we need?
A: Yes,we can .
3.What is your product's MOQ?
A:We haven't exact MOQ for our products ,if you just need 200 KG we also sell .your satisfaction is our biggest pursuit .
