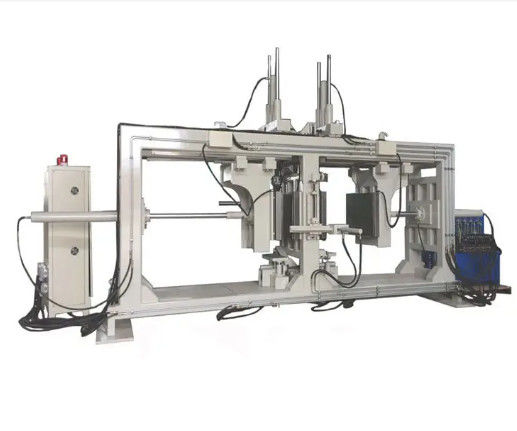

APG Machine for Making Transformers and Insulators

APG Machine for Making Transformers and Insulators

Place of Origin China
Brand Name JT-RESIN
Certification SGS，CE,UL
Model Number 888
Product Details
Application:
Epoxy Resin Production
Insulating Medium:
Epoxy Resin
Magnetic Circuit Structure:
Combined Type
Clamp Plate Size:
1000X1000mm
Min Max Clamp Plate Strok:
250X1650mm
Heating Power:
36kw
Specification:
900*900*900
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Power Source:
Electric
Control System:
PLC
Frequency:
50Hz/60Hz
Type:
Industrial Machinery
Voltage:
220V/380V
Warranty:
1 Year
Material:
Epoxy Resin
Condition:
Used
Highlight:

APG Machine Making Transformers

,

Insulators APG Machine

,

APG Machine for Insulators

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description

Basic Info.

Model NO.
B999
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JT
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year

Product Description

Injection trolley and mixing with APG machine
APG Machine for Making Transformers and Insulators 0APG Machine for Making Transformers and Insulators 1
APG Machine for Making Transformers and Insulators 2


Product Description

Product Description
Standard APG clamping machine.
This series belongs to standard APG clamping machine, the min clamp plate size is 600*800mm, and the max clam plate size is 1200*1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, Etc.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.

*Servo HMI APG Clamping Machine



*Application

This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
*Machine Technical Parameters


Clamp Plate Size
1000*1200mm
Clamp Force
24T
Min MAX Clamp Plate Stroke
240*1250mm
Upper&Lower Core Puller Stroke
760*350mm
Heating power
24KW
Hydraulic power pack
7.5KW
Horizontal tilting angle
0-5°
Mould load weight
2T
Machine weight
5300KG
Machine dimension
3400*1600*3100mm
Detailed Images
APG Machine for Making Transformers and Insulators 3

Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
APG Machine for Making Transformers and Insulators 4APG Machine for Making Transformers and Insulators 5
Packing & DeliveryAPG Machine for Making Transformers and Insulators 6
