Professional on Designing and APG Clamping Machines

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 888
Product Details
Application:
Epoxy Resin Production
Insulating Medium:
Epoxy Resin
Magnetic Circuit Structure:
Combined Type
Clamp Plate Size:
1000X1000mm
Min Max Clamp Plate Strok:
250X1650mm
Heating Power:
36kw
Specification:
900*900*900
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Power Source:
Electric
Control System:
PLC
Frequency:
50Hz/60Hz
Type:
Industrial Machinery
Voltage:
220V/380V
Warranty:
1 Year
Material:
Epoxy Resin
Condition:
Used
Highlight:

APG Clamping Machines

,

APG Clamping Machines

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description

Product Description

Stabdard APG Clamping Machine HAPG-860/880/1000/1200

Machine Technical Parameters
Model no HAPG-860-2
clamp plate size 600X800mm
clamp force 22T
Min Max clamp plate strok 250X1550mm
Upper &lower core puller stroke 800X400mm
Heating power 32KW
ydraulic power pack 7.5KW
Horizontal tilting angle 0-5
mould load weight 2T
Machine weight 8800KG
Machine dimension 7500x1450X3600mm

Model No. HAPG-880 HAPG-810 HAPG-1000 HAPG-1200
Clamp plate sise 800x800mm 1 000x800mm 1 000x 1 000mm 1200x 1 000mm
Clamp force 220KN 250KN 250KN 250KN
Min Max clamp plate stroke 240x 1 500mm 240x 1 550mm 250x 1600mm 250x 1600mm
Upper&lower core puller stroke 800x400mm 800x400mm 900x450mm 1 000x450mm
Heating power 32KW 32KW 36KW 36KW
Hydraulic power pack 7.5KW 7.5KW 7.5KW 7.5KW
ilt angle: vertically and Horizontally 0-7 0-7 0-7 0-7

Mould load weight
3T 4T 4T 5T
Machine weight 7500KG 7800KG 8500KG 9200KG
Machine dimension 5100xl400x3700mm 5100x1400x3700mm 5100x1400x3700mm 5100Kl400x3700mm



Product Description

Injection trolley and mixing with APG machineOne-Stop Service for APG Process Producing for Electrical Insulators
One-Stop Service for APG Process Producing for Electrical Insulators


Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
One-Stop Service for APG Process Producing for Electrical Insulators





Basic Info.

Model NO.
B999
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JT
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year

Product Description

Injection trolley and mixing with APG machine
Injection Machine with Mixer for APG Machine to APG Process for BushingsInjection Machine with Mixer for APG Machine to APG Process for Bushings
Injection Machine with Mixer for APG Machine to APG Process for Bushings


Product Description

Product Description
Standard APG clamping machine.
This series belongs to standard APG clamping machine, the min clamp plate size is 600*800mm, and the max clam plate size is 1200*1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, Etc.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.

*Servo HMI APG Clamping Machine



*Application

This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
*Machine Technical Parameters


Clamp Plate Size
1000*1200mm
Clamp Force
24T
Min MAX Clamp Plate Stroke
240*1250mm
Upper&Lower Core Puller Stroke
760*350mm
Heating power
24KW
Hydraulic power pack
7.5KW
Horizontal tilting angle
0-5°
Mould load weight
2T
Machine weight
5300KG
Machine dimension
3400*1600*3100mm
Detailed Images

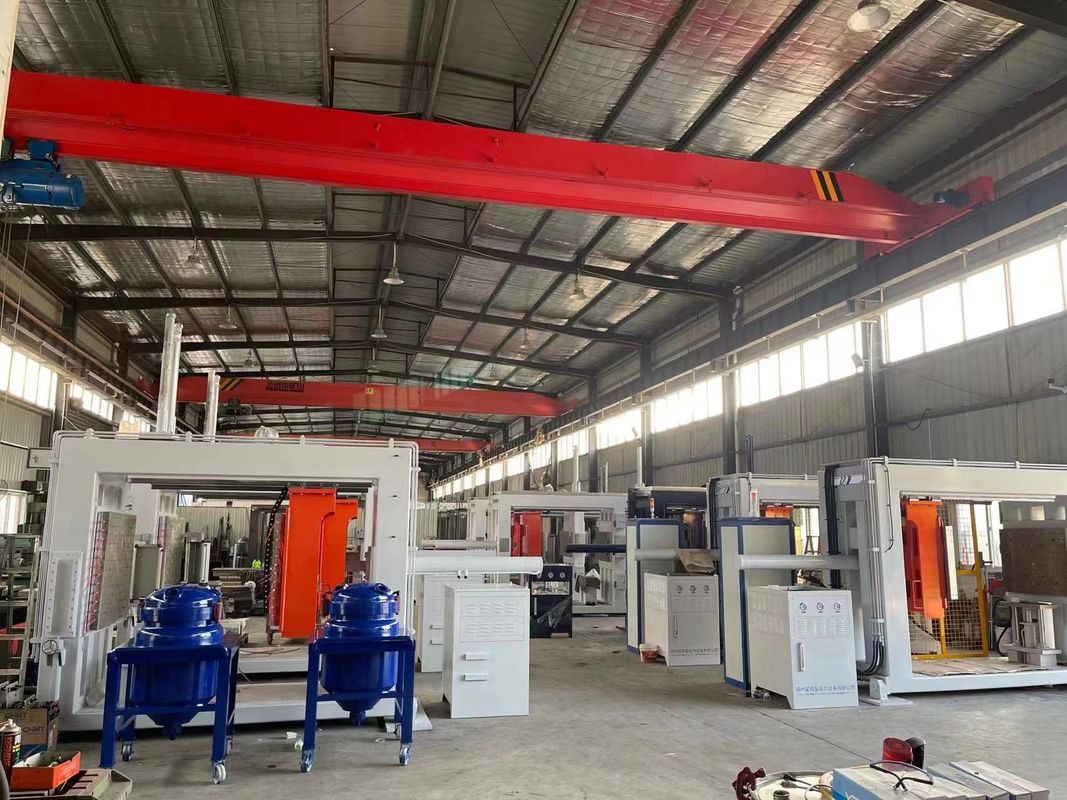

APG Machine for Making Transformers and Insulators

Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
APG Machine for Making Transformers and InsulatorsAPG Machine for Making Transformers and Insulators

Packing & DeliveryAPG Machine for Making Transformers and Insulators
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
The Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The Efficiency
