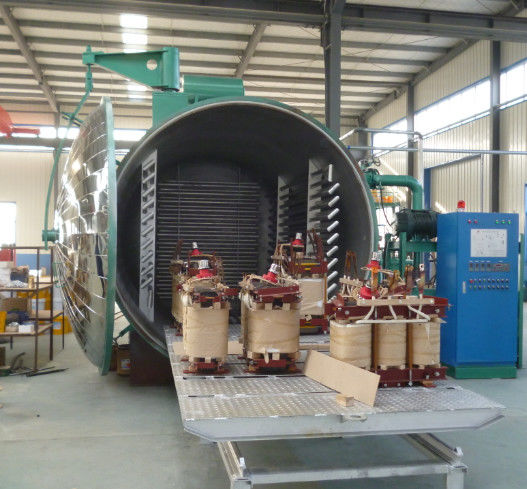

Kcj Series of Static Mixing Vacuum Pressure Casting Plant

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 888
Product Details
Features:
High Precision, Easy Operation, Low Maintenance, Customizable Mixing Ratio And Speed
Drying Medium:
Inactive Gas, Superheated Steam, Effluent Gas, Air
Pouring Pot Size Mm:
2200X3000
Application Area:
For Electrical Insulators
Mixing Bowl:
300L
Product Name:
Vacuum Casting Equipment
Operation Pressure:
Vacuum
Specification:
900*900*900
Dispensing Accuracy:
±1%
Mixing Speed:
Adjustable
Material Compatibility:
Epoxy Resin And Hardener
Weight:
Depends On The Specific Model
Capacity:
Depends On The Specific Model
Dimensions:
Depends On The Specific Model
Application:
Industrial Use, For Mixing And Dispensing Epoxy Resin For Various Purposes
Warranty:
1 Year
Type:
Epoxy Resin Mixing And Dispensing Machine
Dispensing Pressure:
Adjustable
High Light:

Static Mixing Vacuum Casting Machine

,

Pressure Plant Vacuum Casting Machine

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description

Basic Info.

Model NO.
KCJ
Agitator Model
Ribbon Agitator
Tower Reactor Type
Spray Tower Reactor
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Combined
Automatic Grade
Automatic
Condition
New
Turn-Key Projects
One-Step Service
Standard
KCB Series Standard
Product Name
Vacuum Casting Equipment
Pouring Pot Size
2200X3000
Mixing Bowl
300L
Application Area
Application Area
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year

Product Description

Main technical characteristics
1,Device vacuum casting system, vacuum mixing system, electric heating systems, refrigeration systems, an independent vacuum system, pressure systems, measuring systems.
2,Uses the latest static mixing, mixing tank.
3,And condensate filter is our independent research and development of double filtration filters effectively protect the vacuum pump.
4,Pouring cans of clean, energy-efficient heating systems, mixing bowl steady heat conduction oil heating system is adopted.
5,Touch screen +PLC Control, automatic.
6,Vacuum systems to mixing bowl, pouring cans, independence air and high efficiency.
7,The pouring pot is pressurized, pressure system, make the product more
stable and reliable.
8 ,Precision metering pumps, metering system used for measurement.

Technical parameters
Kcj Series of Static Mixing Vacuum Pressure Casting PlantKcj Series of Static Mixing Vacuum Pressure Casting Plant
NO. Model Pouring pot size mm Mixing bowl Vacuum unit(a) Vacuum unit(a) Working pressure Measurement Control mode
1 KCJ-300-2400 2400X3000 2X300L SV300B/ZJY-300 SV300B Pnsttve gressure Static mixing Touch screen
2 KCJ-400-2400 2400X3000 2X400L SV300B/ZJY-300 SV300B Posiive pressure Static mixing Touch screen
3 KCJ-400-2600 2600X3000 2X400L SV300B/ZJY-300 SV300B Posiive pressure Static mixing Touch screen
4 KCJ-400-3000 2000X3500 2X400L 2XSV300B/ZJY-300 SV300B Posiive pressure Static mixing Touch screen
5 KCJ-400-3200 3200X4000 2X400L 2XSV300B/ZJY-600 SV300B Positive pressure etatic mixing Touch screen
Product Decription:
KC Series of epoxy resin vacuum casting equipment is mainly used for dry-type transformers, dry-type casing, dry-type current transformers, dry-type transformers, high-voltage switch insulation, arc and other electrical products of epoxy resin
casting production.
1 ,This series equipment used in electrical products with fillers and pouring;

2 ,This series equipment is suitable A Epoxy resins, UV-outdoor-type epoxy resin and polyurethane vacuum degassing, a combination of polymer materials and casting, for both foreign and domestic production of resin used.
3 ,This series of products can be used for user-filled hybrid and two-component mixed fillers, with great flexibility.
4 ,This series based on user demand, to increase or decrease the equipment
system, modular Assembly option. Easy to install a high degree of automation and easy to master.
KC Series casting equipment are:
KCB Series standard vacuum casting equipment
KCY Series of standard vacuum pressure casting equipment
KCD Series of electronic measurement of vacuum pressure casting plant
KCJ Series of static mixing vacuum pressure casting plant
My Company:
is a high-tech private enterprise, it has a experienced term, which more than ten years engaged in research and development, design, manufacture and installation of vacuum equipment. Besides, it is not only committed to build high quality brand about vacuum equipment, but it also has prodcuts, which are widely used in impregnating, epoxy resin pouring, drying, and note oil processing in some industries(like metal heat treatment, transformer, and transformer device, reactor device, reg- ulator device, high pressure electrical, motor, capacitor, switch and other similar industries).
Relying on strong technical advantages and scale advantages, and it also dedicated itslef to develop Vacuum application technology and relative vacuum equipment Main products are differnent kinds of vacuum casting equipments, vacuum drying equipment, vacuum impregnation equipment, vacuum oiling device equipment, and vacuum heat treatment equipment.
The most important of this company is product qualitu, and it strictly follows international quality certification system, implmentcation od quality poliy about'creating a Kerry brands, buliding first-class equipment, following innovation for development, and being in accordance with customer service.It also provides the best solution, higher quality products and more valuable and efficient after-sales service for
new and old customers.
