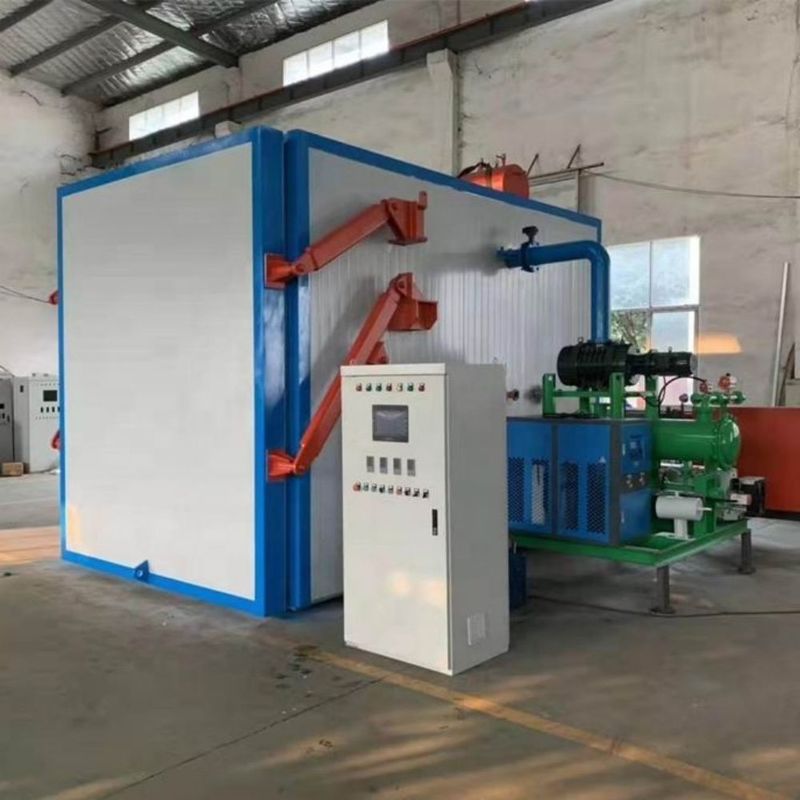

Kbf Large Transformer Vacuum Drying Equipment

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 888
Product Details
Features:
High Precision, Easy Operation, Low Maintenance, Customizable Mixing Ratio And Speed
Drying Medium:
Inactive Gas, Superheated Steam, Effluent Gas, Air
Pouring Pot Size Mm:
2200X3000
Application Area:
For Electrical Insulators
Mixing Bowl:
300L
Product Name:
Vacuum Casting Equipment
Operation Pressure:
Vacuum
Specification:
900*900*900
Dispensing Accuracy:
±1%
Mixing Speed:
Adjustable
Material Compatibility:
Epoxy Resin And Hardener
Weight:
Depends On The Specific Model
Capacity:
Depends On The Specific Model
Dimensions:
Depends On The Specific Model
Application:
Industrial Use, For Mixing And Dispensing Epoxy Resin For Various Purposes
Warranty:
1 Year
Type:
Epoxy Resin Mixing And Dispensing Machine
Dispensing Pressure:
Adjustable
High Light:

Drying Vacuum Equipment

,

Kbf Large Transformer Vacuum Drying Equipment

,

Large Transformer Vacuum Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description

Basic Info.

Model NO.
KBF
Material Status
Solution, Strap
Drying Medium
Inactive Gas, Superheated Steam, Effluent Gas, Air
Operation Pressure
Vacuum
Operational Method
Continuous
Turn-Key Projects
One-Step Service
Standard
KCB Series Standard
Product Name
Vacuum Casting Equipment
Pouring Pot Size mm
2200X3000
Mixing Bowl
300L
Application Area
for Electrical Insulators
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
84292990
Production Capacity
60000PCS/Year

Product Description

Main technical characteristics
1 ,The device from my company KBY Standard transformer vacuum drying equipment gas burner heating based on thermal conductivity of heat, ma+ inly for gas-rich areas, reducing operating costs.
2 ,Device vacuum drying, vacuum, cryogenic condensation system, tran- sformer heating systems, pneumatic tube system, cooling system and
control system.
3 ,Vacuum, vacuum units selection of vacuum pump with the oil-water separation, and reduced operating costs.
4 ,Imported burner heating system heat-conducting oil heating, heat con- duction oil, heat to the tank, safety, reliability and low running costs.
5 ,Condenser uses latest achievements in the world, horizontal condenser, stainless steel manufacture, recovery water automatic control. Configure
chiller provides 10 degrees cold water system is installed below the cond- ensation, ensure that the condensation effect.
6 ,Electric control system with touch-screen control, automatic control.
7 ,Compared with traditional vacuum drying and energy saving 50% Above.

Technical parameters
NO Model Dryer size mm Condenser Vacuum unit Heating system Cooling system Control mode Open method
1 KBII-2400 2400X3000 4m² Horizontal 4m 2X-70/ZJY-300 Bumer + Heat transfer oil Chiller Touch screen Laten Reemen
2 KBII-2600 2600X3500 4m² Horizontal 4m X-100/ZJY-300 Bumer + Heat transfer oil Chiller Touch screer Latan Roement
3 KBII-2800 2800X3500 6m² Horizontal 6m X-100/ZJY-300 Bumer + Heat transfer oil Chiller Touch screen Latera tp men
4 KBII-3000 3000X4000 6m² Horizontal 6m X-100/ZJY-300 Bumer + Heat transter oi Chiller Touch screen Latei Raaenen
5 KBI-3200 3200X4000 6m² Horizontal 6m X-150/ZJY-300 Bumer + Heat transfer oi Chiller Touch screen Laleral Repaeement

My Company:
is a high-tech private enterprise, it has a experienced term, which more than ten years engaged in research and development, design, manufacture and installation of vacuum equipment. Besides, it is not only committed to build high quality brand about vacuum equipment, but it also has prodcuts, which are widely used in impregnating, epoxy resin pouring, drying, and note oil processing in some industries(like metal heat treatment, transformer, and transformer device, reactor device, reg- ulator device, high pressure electrical, motor, capacitor, switch and other similar industries).
Relying on strong technical advantages and scale advantages, and it also dedicated itslef to develop Vacuum application technology and relative vacuum equipment Main products are differnent kinds of vacuum casting equipments, vacuum drying equipment, vacuum impregnation equipment, vacuum oiling device equipment, and vacuum heat treatment equipment.
The most important of this company is product qualitu, and it strictly follows international quality certification system, implmentcation od quality poliy about'creating a Kerry brands, buliding first-class equipment, following innovation for development, and being in accordance with customer service.It also provides the best solution, higher quality products and more valuable and efficient after-sales service for
new and old customers.
