APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 888
Product Details
Application:
Epoxy Resin Production
Insulating Medium:
Epoxy Resin
Magnetic Circuit Structure:
Combined Type
Clamp Plate Size:
1000X1000mm
Min Max Clamp Plate Strok:
250X1650mm
Heating Power:
36kw
Specification:
900*900*900
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Power Source:
Electric
Control System:
PLC
Frequency:
50Hz/60Hz
Type:
Industrial Machinery
Voltage:
220V/380V
Warranty:
1 Year
Material:
Epoxy Resin
Condition:
Used
High Light:

Lbs APG CLAMPING MACHINE

,

Heating System APG CLAMPING MACHINE

,

36 kV APG CLAMPING MACHINE

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description

APG machine
1.Clamping plate size: 1250*800mm
2.main clamping force: 400KN
3.Max opening stroke: 1200mm
4.top cylinder force: 30KN
5.bottom force: 30KN
6.Heating power: 24KW
8.With touch screen to control side
injection
7.Gross weight: 8000KG
8.Machine tilting: 5° by hydraulic X axisProduct Description





Product Description

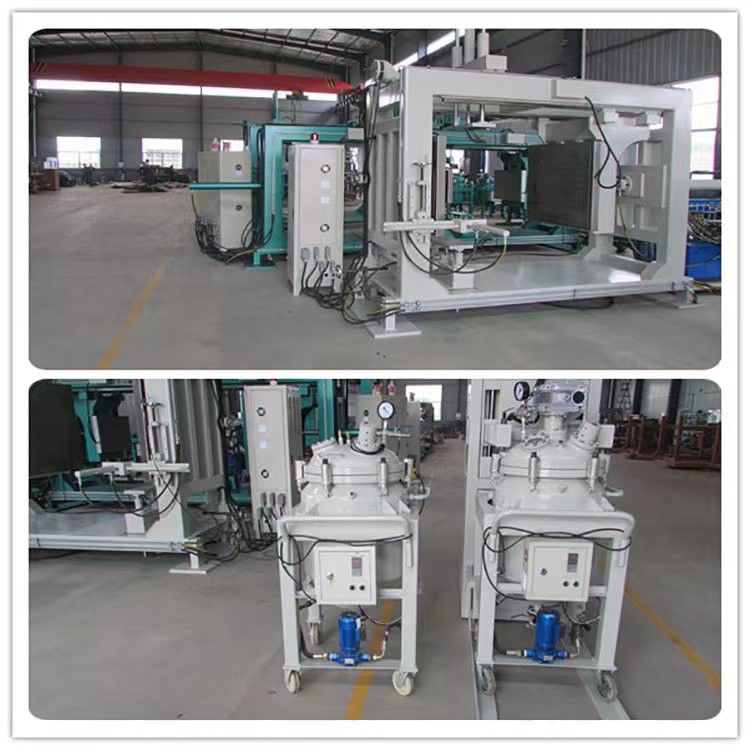

Injection trolley and mixing with APG machineOne-Stop Service for APG Process Producing for Electrical Insulators
One-Stop Service for APG Process Producing for Electrical Insulators


24 kV Lbs mould.
APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs 2APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs 5APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs 8APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs 11


APG Clamping Machine process flow chrt
APG CLAMPING MACHINE WITH HEATING SYSTEM for 24 or36 kV Lbs 14

Epoxy resin vacuum preparation system Technical proposal
I. General provisions
1. specification puts forward the technical requirements of the design, structure, assembly, test and operation of the equipment.
2. the specifications set for this Technical Specification are minimum technical requirements, all technical details are not specified, and the provisions of the relevant standards and specifications are not fully quoted, The supplier shall ensure that the products and services provided comply with this Agreement and relevant national and industry standards, and are functional and perform well. At the same time, it must meet the requirements of national mandatory standards and norms on safety and environmental protection.
3. project is turnkey project, the supplier is responsible for equipment manufacturing, transportation, installation, commissioning, training and service.
4. the equipment provided by the supplier violates intellectual property rights, the tort liability shall be borne by the supplier and shall not harm the interests of the buyer.
5. After the contract comes into effect, the supplier shall provide the buyer with a production schedule that meets the contract delivery date requirements.
6. the layout plan of the equipment provided by the supplier, the basic condition diagram, the electrical diagram, the structure diagram of the main components, etc., the buyer shall confirm before putting into production. The supplier shall unconditionally change the problems that do not meet the requirements of this technical specification.
7. equipment specification shall include the working principle, structure, installation instructions, operation methods and precautions, common faults and handling methods, suppliers and model specifications of the whole equipment and all important systems.
8. supplier undertakes to provide applicable, mature and proven technology for pouring equipment.

II. Scope of application of equipment
The vacuum pouring equipment in this scheme is suitable for pouring epoxy resin coils of various epoxy resin electrical products: transformer, dry transformer, arc suppression coil, reactor, grounding transformer and so on (both adding filler and not adding filler resin system are applicable).

III. Simple description of equipment production
1. product types: various transformers, dry transformers, arc suppression coils, grounding transformers, core reactors and other electrical products.
2. suitable for daily continuous production.
3. Conditions of use of equipment
    1. Equipment operating place: indoor.
    2. Equipment heating mode: power electric heating.
    3. Power supply: voltage :380 V,50Hz, power 55 kW.
    4. compressed air: flow :3/ min, pressure 0.8 MPa.
    5. Environmental conditions: Environmental temperature-15ºC~+40ºC, relative humidity ≤95.
4. electrical components selected Schneider brand.

IV. Main components of the equipment:
  1. premixed resin mixture degassing system (300 L)--1 set
  2. premixed curing agent mixture degassing system (300 L)--1 set
  3. A resin curing agent degassing system (300 L)--1 set
  4. Material discharging pipeline--4sets.
  5. Mixing tank and material piping heating system ----2 sets each
  6. Compressed air systems --1set
  7. Electronic weighing systems and feeding systems--2sets.
  8. Bag unpacking groove 1set
  9. Packing drying tanks--1set
  1. Vacuum feeder-- 1set
  2. Control and Measurement System--1set
  3. Equipment steel operation platform --2 sets

. Technical parameters and description of equipment
  1. Mix tank size: 300L
  2. Vacuum system main pump pumping speed greater than 300 pa L/S( users)
  3. Mixing tank operating temperature 60~75ºC(adjustable)
  4. This equipment adopts automatic dynamic mixer mixing material.
5. this equipment has computer program control and manual control mode. Automatic recording of material tank, mold temperature, vacuum, can be preset the amount of material is automatic control.
7. each mixing tank adopts electric heating, heat conduction oil as heat transfer medium, automatic temperature control. The mixing tank is armored with thin steel plate and sprayed on the surface. Resin and curing agent are inhaled directly from the inlet of premixed tank.
8. vacuum degassing tank adopts film degassing device and anchor stirring device.

. Technical conditions of the systems

  1. 300L resin mixture degassing system :1 set (respectively for resin + filler mixture)
    1. Main technical parameters
Internal effective volume: 300L
Limit vacuum: <50 Pa( no load, normal temperature)
Working vacuum: 50~200 Pa( Adjustable)
No-load leakage rate: <100 Pa.LS
Operating temperature: Room temperature ~100ºC±2ºC(automatic adjustable, automatic constant temperature, overtemperature alarm)
Outer surface temperature of tank: +25ºC environment temperature
Vacuum can be adjusted under controllable conditions, such as 50 Pa-200Pa
    1. For mixing epoxy resin and vacuum degassing,
    2. Structural Characteristics and Description
  1. The tank is vertical structure and the inner wall of the tank is 304 stainless steel. Q235B material for mezzanine coat, filling and cover and large flange
  2. Film degassing device, reducer drive (with frequency converter control).
  3. Mixing: anchor type mixing device, material are stainless steel, frequency conversion reducer drive.
  4. The lid of the tank is provided with feeding port, resin curing agent suction port, vacuum port, observation port and temperature measuring port.
  5. With lighting observation window :1.
  6. Tank heating: tank interlayer heat conduction oil, set up two independent heating center, easy to heat.
  7. Temperature control :1 temperature sensor and temperature control instrument are used to control tank temperature, temperature control range 40~120ºC±5ºC.
  8. Temperature display in the tank :1 temperature sensor and temperature display instrument are used to display tank temperature, temperature display range 0~200ºC.
