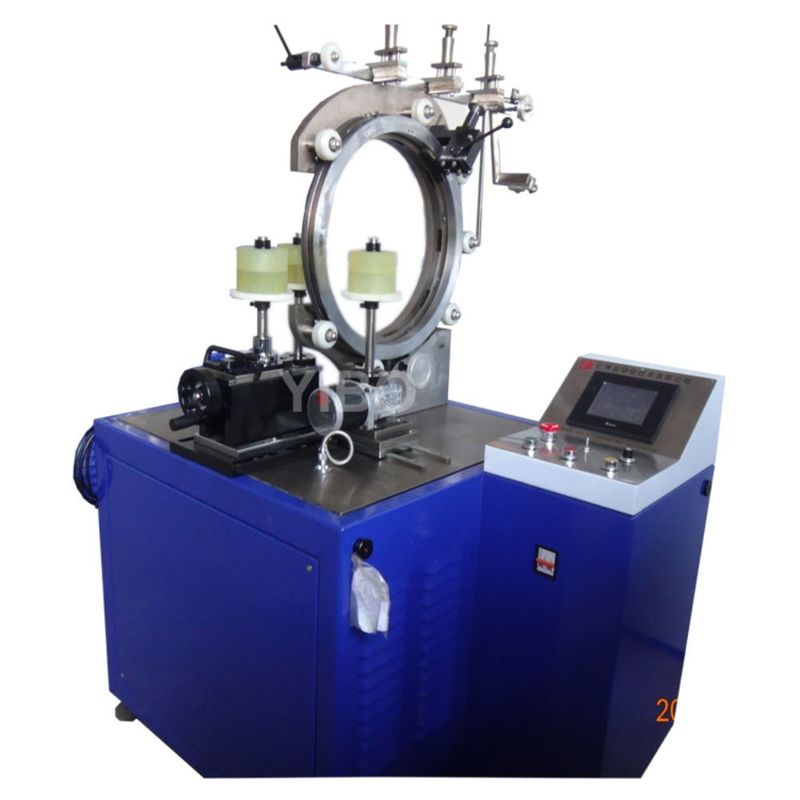

CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine

Place of Origin China
Brand Name JT-RESIN
Certification SGS,CE,UL
Model Number 888
Product Details
Nominal Diameter Of Enameled Wire:
Φ0.10~0.35mm
Min & Max Diameter Of Winded Coils:
10~35kv
Winding Rotation Speed Range:
1440rpm
Machine Tool Power:
1.5kw
Input Power Of Machine Tool:
220v
High Light:

CNC CT Winding Machine

,

1440rpm Rotation CNC Winding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
consult
Packaging Details
Wooden
Delivery Time
5 days
Payment Terms
T/T, Western Union, MoneyGram, D/P
Supply Ability
100pcs/month
Product Description
Product introduce:
 Input power of machine tool220v
机床重量 Weight of machine tool60kg
机床外形尺寸 Dimensions of machine tool600x600x1200mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 0

 ModelZDR-2
 Nominal diameter of enameled wireΦ0.8~2.6mm
 Max winding breadth260mm
 Winding rotation speed range1440rpm
 Voltage range of application10~35kv
 Machine tool power1.5kw
 Input power of machine tool220v
 Weight of machine tool160kg
 Dimensions of machine tool1100x700x1200mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 1

Product name Secondary CNC winding machine for current transformer
 ModelZDL-2
Nominal diameter of enameled wireΦ0.8~2.6mm
 Min & Max diameter of winded coilsΦ45~300mm
 Winding rotation speed range1440rpm
 Voltage range of application10~35kv
 Machine tool power1.5kw
Input power of machine tool220v
 Weight of machine tool160kg
 Dimensions of machine tool1100x700x1200mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 2

 Product name CNC parallel winding machine for voltage transformer
 ModelZDT-1
 Nominal diameter of enameled wireΦ0.10~3.0mm
 Min & Max diameter of winded coilsΦ50~360mm
 Distance between two centers500mm
 Winding rotation speed range1440rpm
 Voltage range of application10~35kv
 Machine tool power1.5kw
 Input power of machine tool220v
 Weight of machine tool160kg
 Dimensions of machine tool1200x700x1400mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 3


 Product name CNC rectangular winding machine for low voltage transformer
 ModelZDH-2
 Nominal diameter of enameled wireΦ0.26~1.0mm
 Max winding length180mm
 Max winding width180mm
 Winding rotation speed range1440rpm
 Voltage range of application0.5~0.66kv
 Machine tool power0.55kw
 Input power of machine tool220v
 Weight of machine tool60kg
Dimensions of machine tool600x600x1200mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 4

 ModelZDQ-2
 Nominal diameter of enameled wireΦ0.26~1.0mm
 Min inner & Max outer diameter of winded coilsΦ25~100mm
 Winding rotation speed range1440rpm
 Voltage range of application0.5~0.66kv
 Machine tool power0.55kw
 Input power of machine tool220v
 Weight of machine tool60kg
 Dimensions of machine tool600x600x1200mm


CNC CT Instrument Winding Machine And CNC PT Instrument Winding Machine 5
