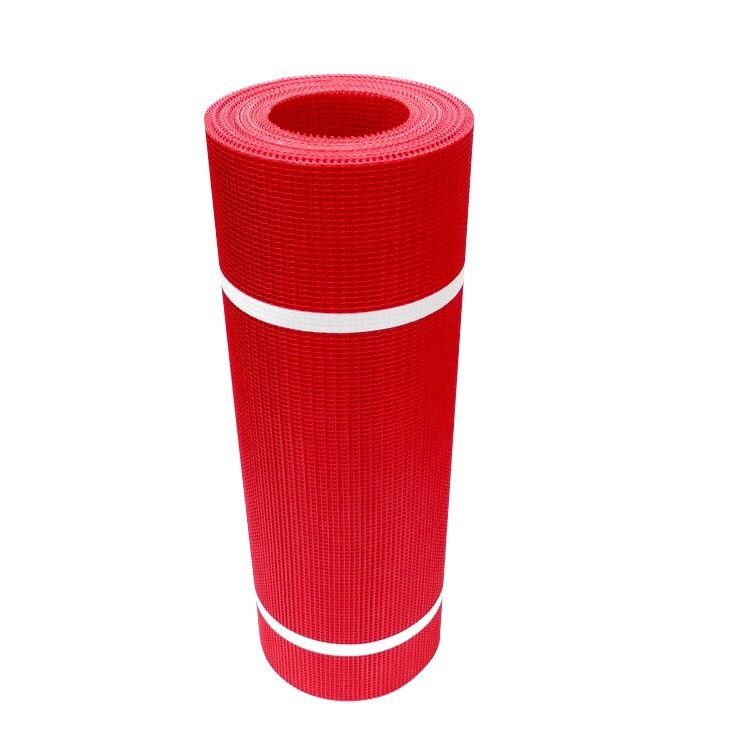

Red Transformer Raw Material Fiberglass Wire Mesh For Electrical Insulation

Place of Origin	HUBEI, CHINA
Brand Name	JT
Certification	ISO.CE.UL
Model Number	JT-05

Product Details

WIDTH:

10mm~1500mm

COLOR:

RED

SHAP:

Grid Cloth

Function Of Action:

Insulation

Weight:

30 Kilograms Per Roll

CLASS:

Highlight:

Red Transformer Raw Material

Fiberglass Transformer Raw Material

Electrical Insulation Fiberglass Wire Mesh

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Packaging Details

packed with roll

Supply Ability

20 tons/ week

Product Description

MANUFACTURE FIBER GLASS MESH EPOXY FOR ELECTRICAL INSULATION PRODUCTS

DMD FOR TRANSFORMERS

PRODUCT DESCRITION:

DMD is used for transformers

Various sizes for option:

Technical Data
No.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.32	0.37
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	Tensile Stength MD no bending MD after bending TD no bending TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	(155±2)ºC10 Bonding strength at 155±2ºC for 10 min	-	No dlamination,blister and drainage

Red Transformer Raw Material Fiberglass Wire Mesh For Electrical Insulation 0

Hubei plant and Guangdong plant:

Packing hoto:

ISO certificate:

Red Transformer Raw Material Fiberglass Wire Mesh For Electrical Insulation 3

FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.

2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price

3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
