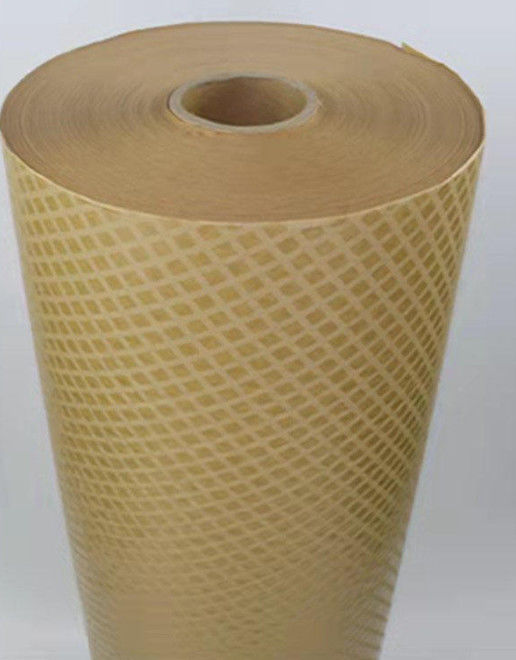

Grid Thermal Electrical Insulation Cloth With Glue Material For Dry Transformer

Place of Origin	HUBEI, CHINA
Brand Name	JT
Certification	ISO.CE.UL
Model Number	JT666

Product Details

WIDTH:

0.18mm

COLOR:

RED

SHAP:

Grid Cloth

Function Of Action:

Insulation

Weight:

30 Kilograms Per Roll

CLASS:

Highlight:

Thermal Electrical Insulation Cloth

Grid Electrical Insulation Cloth

Thermal Insulation Cloth For Transformer

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Packaging Details

packed with roll

Supply Ability

20 tons/ week

Product Description

Cloth with glue material DMD for Electrical Insulation 300KV Dry Type Tranformer

PRODUCT DESCRITION:

6630A polyester film, polyester fiber, non-woven fabric, soft and compliant material

Grid Thermal Electrical Insulation Cloth With Glue Material For Dry Transformer 0

Various sizes for option:

Technical Data
No.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.32	0.37
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	Tensile Stength MD no bending MD after bending TD no bending TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	(155±2)ºC10 Bonding strength at 155±2ºC for 10 min	-	No dlamination,blister and drainage

Grid Thermal Electrical Insulation Cloth With Glue Material For Dry Transformer 2

Hubei plant and Guangdong plant:

Packing hoto:

ISO certificate:

Grid Thermal Electrical Insulation Cloth With Glue Material For Dry Transformer 5

FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.

2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price

3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
