Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO
Model Number JT8053
Product Details
TG:
110
MIXING RATION:
100/90
LIQUID TYPE:
PRE-FILL
COLOR:
COLOR PASTE / RED
VOLTAGE TYPE:
LOW
Sample Curing Conditions:
10h @140℃
High Light:

Pre - Filled Electrical Insulating Epoxy

,

Liquid Electrical Insulating Epoxy

,

Liquid High Viscosity Resin

Payment & Shipping Terms
Minimum Order Quantity
20kg
Price
negotiable

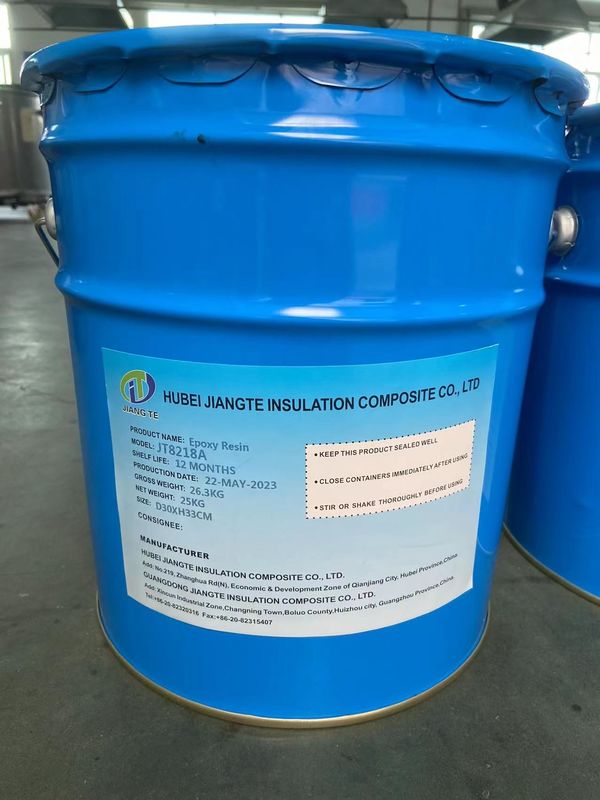

Packaging Details
drum
Product Description

Electrical Insulation Epoxy Resin for 33kv Bushing of High Viscosity with APG Process

Product ratio:

EPOXY RSIN JT 8053 A 100 pbw
HARDENER JT 8053 B 90 pbw
SILICA POWDER FILLER 360 pbw





PRODUCT NAME:

EPOXY RESIN FOR LBS, BUSHINGS, SPOUTS, MONOBLOCK, SWITCH GEARS, EMBEDDED POLES, INSULATORS

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 0





TDS:



Characteristics:

Strong adhesion

Good insulation

Good process performance

Good surface gloss and electrical resistance

Excellent moisture resistance



1. Appearance& Characteristics:

Item Color Viscosity@25℃(mPa·s) Density@25℃( g/cm3 )
JT8053A Epoxy resin clear liquid 1000-3000 1.00-1.20
JT8053B Hardener Yellowish liquid 10-80 0.90-1.00





2. Mixing ratio: JT2051A/JT2051B=4/1(pbw)

3. Applicable time: 25-40mintus at 25℃( mixture: 100g)

4. Curing condition: 8-12h@25℃ or 6h@60℃, full curing takes 3days at Room temperature.



5. Process:

Mixing two components in a certain proportion and keep it for 10minutes, brush them to the iron core after the viscosity is increasing.



6. Properties:

Hardness(Shore D) 70-80
Bending strength (MPa) 30-50
Impact strength (kJ/m2) 20-40
Dielectric strength (kV/mm) 10-15
Volume resistivity (W·cm) >1013



7. Packing:

Component A: 24kg

Component B: 6kg



8. Storage

The product should be sealed in the original packaging container, stored in a dry and ventilated place to save. The shelf life is 6 months under 18~40℃ condition . If exceeds the shelf life time, it needs to be tested again to confirm whether it can be used or not.



Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 1

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 2



Client Product:

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 3

Equipment used by customers:

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 4Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 5



Hubei Plant and Guangdong Plant:

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 6

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 7



ISO certifcate:

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 8



Part of our customers:

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 9

Pre - Filled Electrical Insulating Epoxy , Liquid High Viscosity Epoxy Resin 10





FAQ:



1. What’s the Pre-filled?

Pre-filled is the resin or hardener has been filled with silica sands before delivering to you.



2. Is Pre-filled resin cheaper than Pure resin?

Generally it is. However, you should consider the final cost. If you can find qualified silica sands in you local market, the pure resin is better choice. Silica sands are very cheap, sea freight cost is high. With same quantity of resin in a shipment, you can get more final mixed resin with local silica sands.



3. Why JiangTe resin doesn’t offer Flexibilizer and Accelerator?

We’ve added them into resin/hardener already before delivering to you. So you can use our materials easily
