Electrical Insulation Transformer Raw Material Coating Square Wire Mesh
  • Electrical Insulation Transformer Raw Material Coating Square Wire Mesh
  • Electrical Insulation Transformer Raw Material Coating Square Wire Mesh
  • Electrical Insulation Transformer Raw Material Coating Square Wire Mesh
  • Electrical Insulation Transformer Raw Material Coating Square Wire Mesh

Electrical Insulation Transformer Raw Material Coating Square Wire Mesh

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO.CE.UL
Model Number JT-01
Product Details
WIDTH:
10mm~1500mm
SHAP:
Grid Cloth
Weight:
30 Kilograms Per Roll
CLASS:
F
Type:
Iiquid Epoxy Resin
Capacity:
1000VA
Color:
Silver
Current:
10A
Frequency:
50Hz
Humidity:
50%
Insulation:
Fiberglass
Material:
Copper
Resistance:
Shape:
Square
Size:
100*100mm
Temperature:
150℃
Thickness:
0.2mm
Voltage:
220V
Weight:
2kg
High Light:

Coating Transformer Raw Material

,

Square Transformer Raw Material

,

Coating Square Wire Mesh

Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Packaging Details
packed with roll
Supply Ability
20 tons/ week
Product Description

CE CERTICATED ELECTRICAL INSULATION FIBER GLASS MESH OF COATING FOR 30KV TRANSFORMER

DMD FOR TRANSFORMERS



PRODUCT DESCRITION:

DMD is used for transformers



Strong adhesion and good mechanical property          Characteristics

Good moisture, mildew, rust and salt spray resistance

Excellent Insulating property

Good flow, high gloss surface

Good workability



Various sizes for option:

Technical Data
No.
Item
Unit
Normal value
1

Nominal thickness
mm
0.15
0.17
0.20
0.25
0.32
0.37
2

Nominal weight and tolerance
g/m2
140±20
190±28
225±33
300±45
350±52
425±63
3

Nominal thickness of film
um
50
75
100
150
190
250
4
Tensile Stength
MD no bending
MD after bending
TD no bending
TD after bending
N/10mm
≥80
≥80
≥80
≥70
≥120
≥105
≥105
≥120
≥140
≥120
≥120
≥100
≥190
≥170
≥150
≥130
≥270
≥200
≥200
≥150
≥320
≥300
≥300
≥200
5
Elongation
MD no bending
MD after bending
TD no bending
TD after bending
%
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥15
≥10
≥5
≥5
≥5
≥5
6
Breakdown voltage
Normal
KV
≥6
≥7
≥9
≥12
≥15
≥18
7
Bonding strength at room temperature
-
No delamination
8

(155±2)ºC10
Bonding strength at 155±2ºC for 10 min
-
No dlamination,blister and drainage

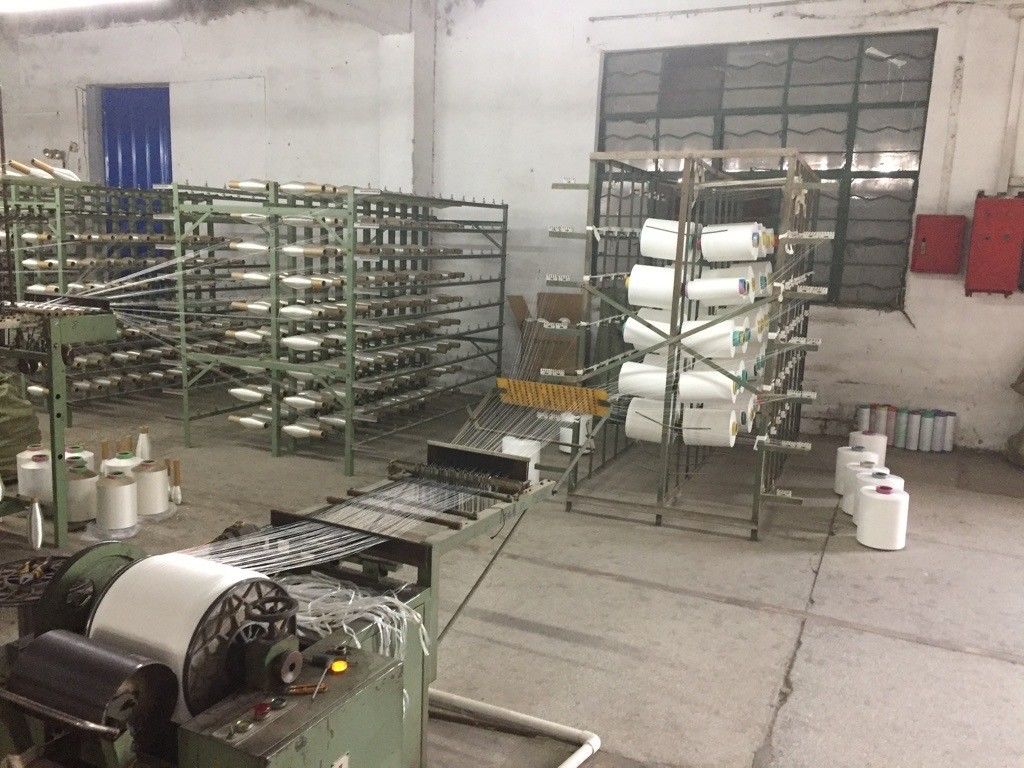

Hubei plant and Guangdong plant:

Electrical Insulation Transformer Raw Material Coating Square Wire Mesh 0



DMD is just one of many insulation materials used in electrical applications, and its properties make it well-suited for certain applications compared to other materials. Here are some comparisons with other insulation materials:

DMD vs. Nomex: Nomex is another popular insulation material used in transformers. It is a synthetic material made from aramid fibers and is known for its high-temperature resistance. While Nomex is better suited for high-temperature applications, DMD typically has better mechanical properties and is less expensive.

DMD vs. Kapton: Kapton is a polyimide film that is also used for insulation in electrical applications. Kapton has excellent thermal stability and is often used in high-temperature applications, but it is more expensive than DMD and not as good at preventing electrical arcing.

DMD vs. Epoxy: Epoxy is a common insulation material used in electrical applications. It is a thermosetting polymer that is applied as a coating or adhesive. While epoxy has excellent adhesion and chemical resistance, it is not as good at preventing electrical arcing as DMD.

DMD vs. Mica: Mica is a natural mineral that is often used as an insulation material in electrical applications. While mica has excellent electrical properties, it is less flexible and more prone to cracking than DMD, making it less suitable for applications that require a lot of bending or flexing.

Overall, the choice of insulation material depends on the specific application requirements, including temperature, voltage, mechanical stress, and cost. DMD is a popular choice for transformer insulation due to its combination of electrical and mechanical properties and its cost-effectiveness.







ISO certificate:

Electrical Insulation Transformer Raw Material Coating Square Wire Mesh 1Electrical Insulation Transformer Raw Material Coating Square Wire Mesh 2





FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.



2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price



3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
