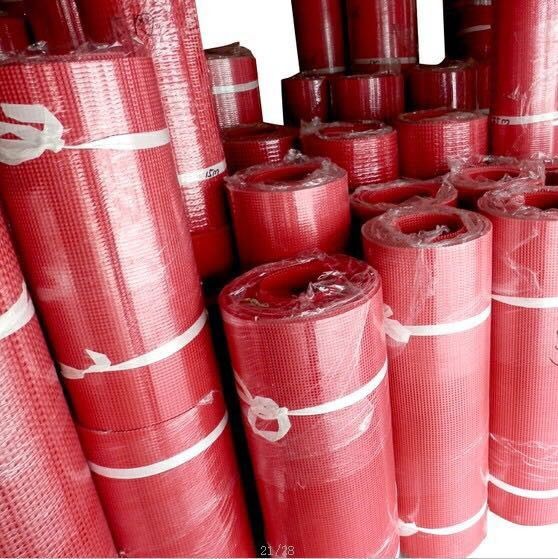

Acid Resistant Fiberglass Netting Mesh

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO.CE.UL
Model Number JT-05
Product Details
WIDTH:
0.18mm
COLOR:
RED
SHAP:
Grid Cloth
Altitude:
≤1000m
Ambient Temperature:
≤40℃
Connection Group:
Yyn0
Cooling Method:
Oil-Immersed
Core Type:
Three-Phase Core
Frequency:
50Hz
Impedance:
5%
Insulation Level:
F
Load Loss:
≤10kW
Material:
Copper
No-load Current:
≤1.2%
No-load Loss:
≤3.5kW
Power Rating:
200kVA
Temperature Rise:
≤80K
Voltage Ratio:
11kV/0.433kV
High Light:

Oil - Immersed Fiberglass Netting Mesh

,

Acid Resistant Fiberglass Netting Mesh

,

Acid Resistant Fiber Mesh Roll

Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Packaging Details
packed with roll
Supply Ability
20 tons/ week
Product Description

F-grade epoxy prepreg material of DMD for Electrical Insulation 300KV transformer

DMD FOR TRANSFORMERS



PRODUCT DESCRITION:

DMD is used for transformers

DMD, or Dacron Mylar Dacron, is a type of electrical insulation material that is commonly used for transformers. It is a three-layer composite material consisting of two layers of polyester film (Mylar) with a layer of nonwoven polyester fiber (Dacron) in between.

DMD offers excellent electrical and mechanical properties, making it ideal for use in transformer insulation. It has a high dielectric strength, good thermal stability, and excellent resistance to moisture and chemicals. DMD also has good tensile strength and tear resistance, which makes it durable and long-lasting.

In transformer applications, DMD is typically used as a layer of insulation between the transformer windings. It helps to prevent electrical arcing and short circuits, while also providing mechanical support to the windings. DMD is also used as a slot liner to insulate the slots where the windings are placed.

Overall, DMD is a reliable and effective insulation material that is widely used in transformer manufacturing. Its combination of electrical and mechanical properties make it an ideal choice for this application.



Various sizes for option:

Technical Data
No.
Item
Unit
Normal value
1

Nominal thickness
mm
0.15
0.17
0.20
0.25
0.32
0.37
2

Nominal weight and tolerance
g/m2
140±20
190±28
225±33
300±45
350±52
425±63
3

Nominal thickness of film
um
50
75
100
150
190
250
4
Tensile Stength
MD no bending
MD after bending
TD no bending
TD after bending
N/10mm
≥80
≥80
≥80
≥70
≥120
≥105
≥105
≥120
≥140
≥120
≥120
≥100
≥190
≥170
≥150
≥130
≥270
≥200
≥200
≥150
≥320
≥300
≥300
≥200
5
Elongation
MD no bending
MD after bending
TD no bending
TD after bending
%
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥15
≥10
≥5
≥5
≥5
≥5
6
Breakdown voltage
Normal
KV
≥6
≥7
≥9
≥12
≥15
≥18
7
Bonding strength at room temperature
-
No delamination
8

(155±2)ºC10
Bonding strength at 155±2ºC for 10 min
-
No dlamination,blister and drainage







Acid Resistant Fiberglass Netting Mesh 0





Packing hoto:

Acid Resistant Fiberglass Netting Mesh 1



ISO certificate:

Acid Resistant Fiberglass Netting Mesh 2Acid Resistant Fiberglass Netting Mesh 3





FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.



2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price



3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
