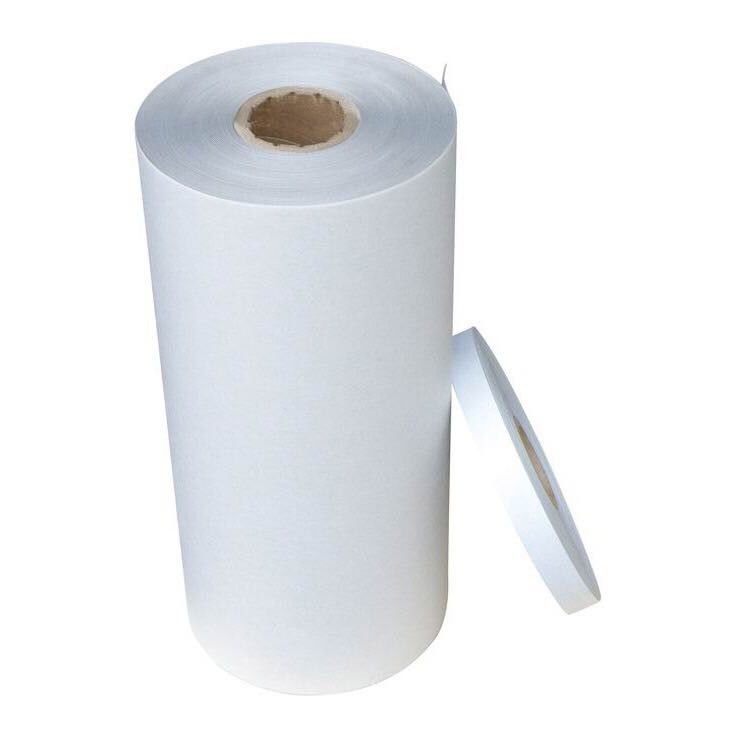

0.21mm Transformer Raw Material
  • 0.21mm Transformer Raw Material
  • 0.21mm Transformer Raw Material
  • 0.21mm Transformer Raw Material
  • 0.21mm Transformer Raw Material
  • 0.21mm Transformer Raw Material

0.21mm Transformer Raw Material

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO.CE.UL
Model Number JT-05
Product Details
WIDTH:
0.21mm
COLOR:
White
SHAP:
Grid Cloth
Function Of Action:
Insulation
Weight:
30 Kilograms Per Roll
CLASS:
F
High Light:

0.21mm Transformer Raw Material

,

Transformer Raw Material Tape

,

0.21mm Glass Fiber Tape

Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Packaging Details
packed with roll
Supply Ability
20 tons/ week
Product Description

H-grade epoxy prepreg material of DMD for Electrical Insulation 33KV Voltage Transformer

DMD FOR TRANSFORMERS



PRODUCT DESCRITION:

DMD is used for transformers

0.21mm Transformer Raw Material 0



Various sizes for option:

Technical Data
No.
Item
Unit
Normal value
1

Nominal thickness
mm
0.15
0.17
0.20
0.25
0.32
0.37
2

Nominal weight and tolerance
g/m2
140±20
190±28
225±33
300±45
350±52
425±63
3

Nominal thickness of film
um
50
75
100
150
190
250
4
Tensile Stength
MD no bending
MD after bending
TD no bending
TD after bending
N/10mm
≥80
≥80
≥80
≥70
≥120
≥105
≥105
≥120
≥140
≥120
≥120
≥100
≥190
≥170
≥150
≥130
≥270
≥200
≥200
≥150
≥320
≥300
≥300
≥200
5
Elongation
MD no bending
MD after bending
TD no bending
TD after bending
%
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥15
≥10
≥5
≥5
≥5
≥5
6
Breakdown voltage
Normal
KV
≥6
≥7
≥9
≥12
≥15
≥18
7
Bonding strength at room temperature
-
No delamination
8

(155±2)ºC10
Bonding strength at 155±2ºC for 10 min
-
No dlamination,blister and drainage







0.21mm Transformer Raw Material 1





Hubei plant and Guangdong plant:

0.21mm Transformer Raw Material 2



Packing hoto:

0.21mm Transformer Raw Material 3



ISO certificate:

0.21mm Transformer Raw Material 40.21mm Transformer Raw Material 5





FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.



2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price



3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
