Epoxy Transformer Raw Material Electrical Insulation 0.23mm Grid Cloth Roll

Place of Origin	HUBEI, CHINA
Brand Name	JT
Certification	ISO.CE.UL
Model Number	JT-05

Product Details

WIDTH:

0.23mm

COLOR:

GREY

SHAP:

Grid Cloth

Function Of Action:

Insulation

Weight:

30 Kilograms Per Roll

CLASS:

Cas No.:

50-28-2

Purity:

99%

Mf:

C18H14CaO8.CH4N2O

Einecs No.:

227-273-0

Shelf Life:

2 Years

Classification:

Chemical Auxiliary Agent

Highlight:

Epoxy Transformer Raw Material

Insulation Transformer Raw Material

0.23mm Grid Cloth Roll

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Packaging Details

packed with roll

Supply Ability

20 tons/ week

Product Description

Country Power F-grade epoxy prepreg material of DMD for Electrical Insulation transformer CT PT VT

DMD FOR TRANSFORMERS

Strong adhesion Characteristics

Good insulation

Good process performance

Good surface gloss and electrical resistance

Excellent moisture resistance

PRODUCT DESCRITION:

DMD is used for transformers

Various sizes for option:

Technical Data
No.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.32	0.37
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	Tensile Stength MD no bending MD after bending TD no bending TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	(155±2)ºC10 Bonding strength at 155±2ºC for 10 min	-	No dlamination,blister and drainage

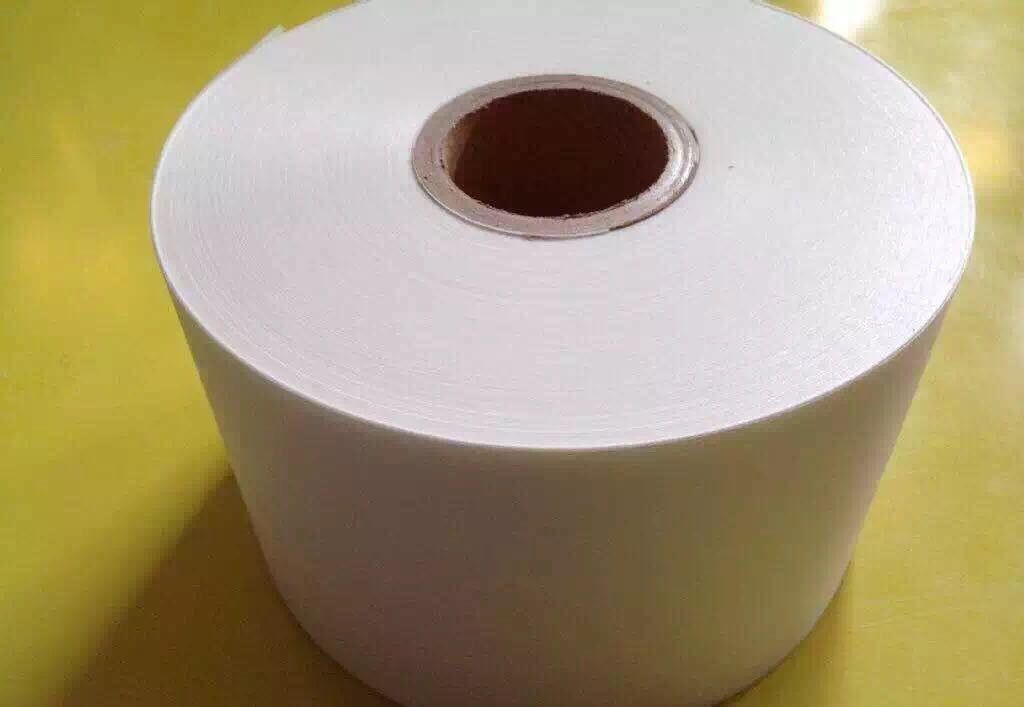

Epoxy Transformer Raw Material Electrical Insulation 0.23mm Grid Cloth Roll 1

Hubei plant and Guangdong plant:

Packing hoto:

ISO certificate:

Epoxy Transformer Raw Material Electrical Insulation 0.23mm Grid Cloth Roll 4

FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.

2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price

3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
