Polyester Film Transformer Raw Material Roll For Electrical Insulation
  • Polyester Film Transformer Raw Material Roll For Electrical Insulation
  • Polyester Film Transformer Raw Material Roll For Electrical Insulation
  • Polyester Film Transformer Raw Material Roll For Electrical Insulation
  • Polyester Film Transformer Raw Material Roll For Electrical Insulation
Polyester Film Transformer Raw Material Roll For Electrical Insulation

Polyester Film Transformer Raw Material Roll For Electrical Insulation

Place of Origin HUBEI, CHINA
Brand Name JT
Certification ISO.CE.UL
Model Number JT000
Product Details
WIDTH:
0.18mm
COLOR:
RED
SHAP:
Grid Cloth
Function Of Action:
Insulation
Weight:
30 Kilograms Per Roll
CLASS:
F
Highlight:

Transformer Raw Material Roll

,

Insulation Transformer Raw Material

,

Electrical Insulation Polyester Film Roll

Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Packaging Details
packed with roll
Supply Ability
20 tons/ week
Product Description

6630A polyester film and polyester fiber for Electrical Insulation 300KV oil transformer

PRODUCT DESCRITION:

6630A polyester film, polyester fiber, non-woven fabric, soft and compliant material

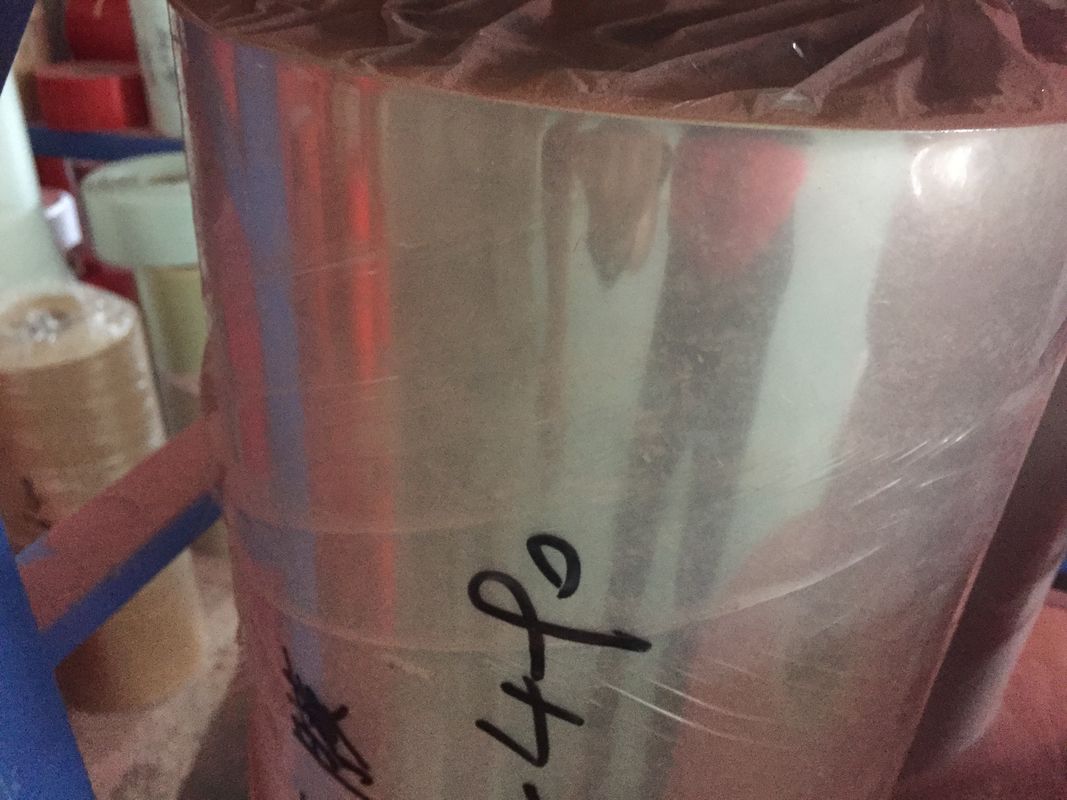

Polyester Film Transformer Raw Material Roll For Electrical Insulation 0



Various sizes for option:

Technical Data
No.
Item
Unit
Normal value
1

Nominal thickness
mm
0.15
0.17
0.20
0.25
0.32
0.37
2

Nominal weight and tolerance
g/m2
140±20
190±28
225±33
300±45
350±52
425±63
3

Nominal thickness of film
um
50
75
100
150
190
250
4
Tensile Stength
MD no bending
MD after bending
TD no bending
TD after bending
N/10mm
≥80
≥80
≥80
≥70
≥120
≥105
≥105
≥120
≥140
≥120
≥120
≥100
≥190
≥170
≥150
≥130
≥270
≥200
≥200
≥150
≥320
≥300
≥300
≥200
5
Elongation
MD no bending
MD after bending
TD no bending
TD after bending
%
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥20
≥10
≥15
≥10
≥15
≥10
≥5
≥5
≥5
≥5
6
Breakdown voltage
Normal
KV
≥6
≥7
≥9
≥12
≥15
≥18
7
Bonding strength at room temperature
-
No delamination
8

(155±2)ºC10
Bonding strength at 155±2ºC for 10 min
-
No dlamination,blister and drainage







Polyester Film Transformer Raw Material Roll For Electrical Insulation 1





Hubei plant and Guangdong plant:

Polyester Film Transformer Raw Material Roll For Electrical Insulation 2



Packing hoto:

Polyester Film Transformer Raw Material Roll For Electrical Insulation 3



ISO certificate:

Polyester Film Transformer Raw Material Roll For Electrical Insulation 4Polyester Film Transformer Raw Material Roll For Electrical Insulation 5





FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.



2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price



3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
